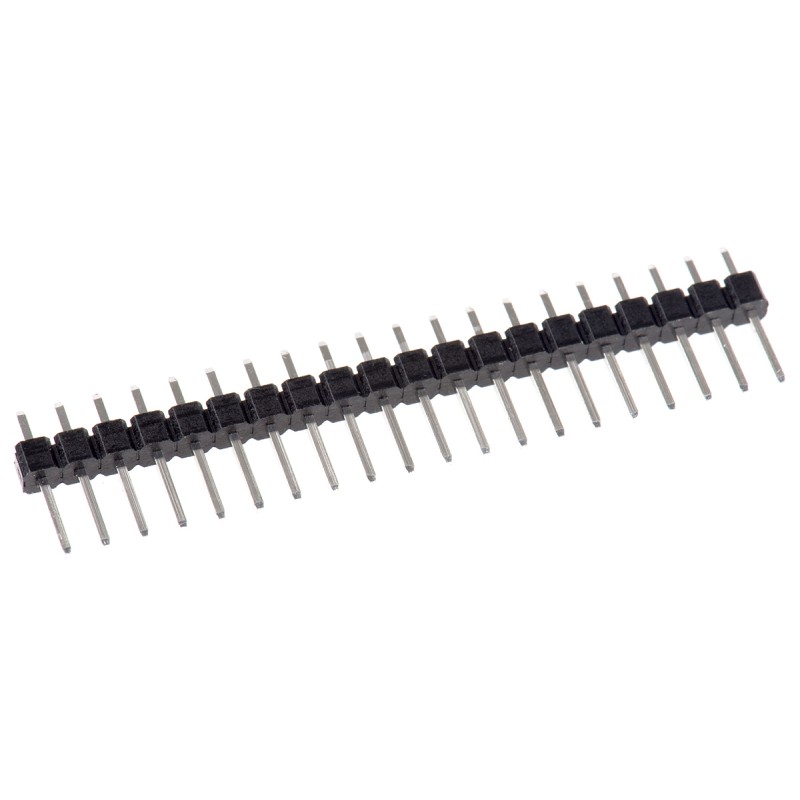

50 pcs - M20-9992046 HARWIN M20 Series Straight Through Hole Pin Header, 20 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Harwin M20 2.54mm PCB Pin Header ConnectorsM20 series PCB through hole and SMT mount header connectors with a 2.54mm pitch. These M20 2.54 mm PCB headers are available with dual and single row, vertical and right angle configurations making them a versatile solution for various applications. The housings of these M20 2.54 mm PCB pin header connectors are also supplied with different mating pin lengths: M20-975xxx, M20-976xxx, M20-977xxx = 5.8 mm pin heightM20-995xxx, M20-996xxx, M20-998xxx, M20-999xxx = 6.1 mm pin heightM20-997xxx = 8.5 mm pin heightThe housings of both PCB through hole and SMT headers are made from high temperature thermoplastic enabling them to withstand the same reflow soldering processThe design of the housings incorporates castellations enabling them to be cut to size where required, care should be taken with the tails when doing thisThese M20 2.54 mm PCB pin header connectors mate with the M20 series PCB sockets, socket housings and jumpers.Features and BenefitsMultiple configuration options and pin mating lengths for design flexibilityThermoplastic housings can withstand reflow soldering processCan be cut to smaller sizesApplicationsThese M20 2.54 mm PCB headers can be used in a wide range of applications and are established as standard connectors in embedded PCs, motherboards and large electronics systemsApplications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing
