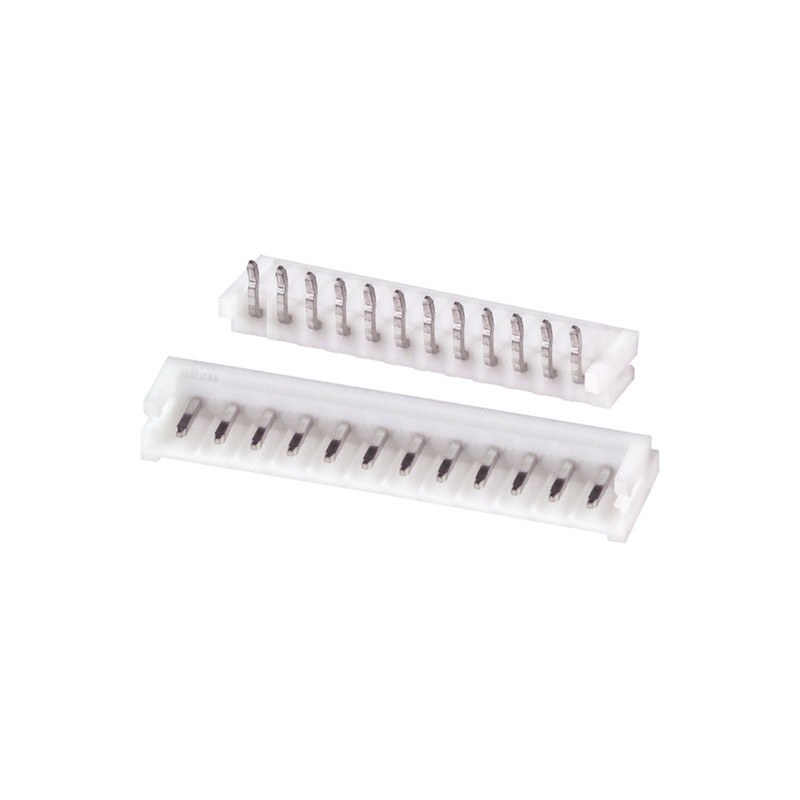

    50 pcs - S12B-EH (LF) (SN) JST EH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded
    • 50 pcs - S12B-EH (LF) (SN) JST EH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded

    50 pcs - S12B-EH (LF) (SN) JST EH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded

    50(Allparts)5128276
    JST
    50 pcs - S12B-EH (LF) (SN) JST EH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded
    £51.47
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    EH Series 90° PCB HeadersJST EH series 2.5mm pitch single-row shrouded side-entry (90°) PCB headers. They have integral keying which ensures correct polarisation when mated. For corresponding crimp socket housings see RS 515-6209 typical, for IDC socket housings see RS 311-6287 typical.
    Product Details
    JST
    50(Allparts)5128276
    S12B-EH (LF) (SN)
    10 Items

    Data sheet

    Manufacturer
    JST
    Current rating
    3.0A
    Contact material
    brass
    Contact plating
    Tin
    A-Supplier
    Allparts-UK/15/R-10
    Series
    EH
    Voltage Rating
    250.0 V
    Mounting Type
    Through Hole
    Number of Contacts
    12
    Termination Method
    Solder
    Body Orientation
    Right Angle
