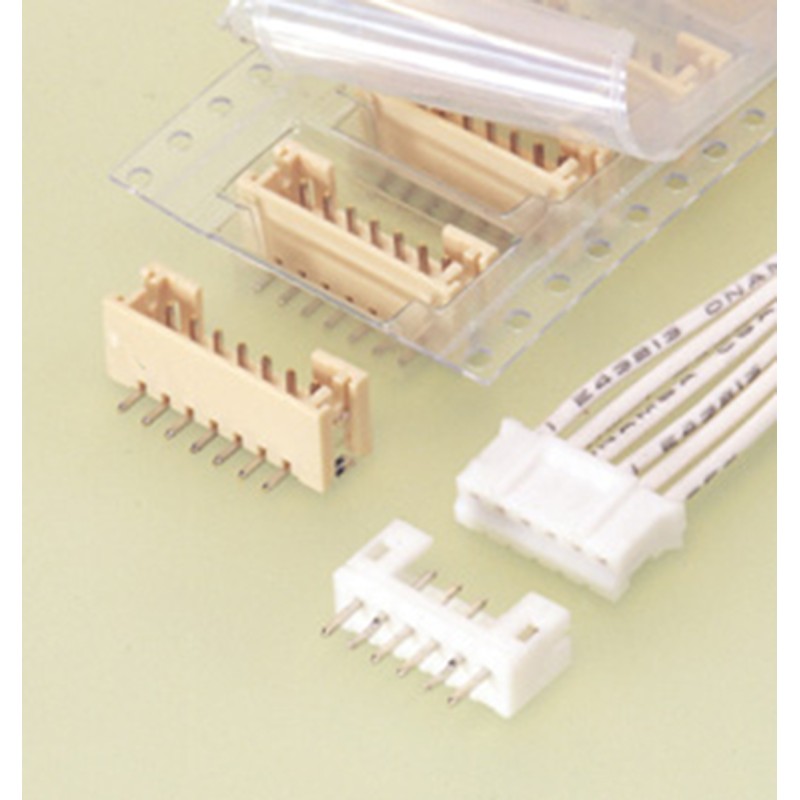

    50 pcs - S12B-PH-K-S (LF)(SN) JST PH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded
    • 50 pcs - S12B-PH-K-S (LF)(SN) JST PH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded

    50 pcs - S12B-PH-K-S (LF)(SN) JST PH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded

    50(Allparts)1755580
    JST
    50 pcs - S12B-PH-K-S (LF)(SN) JST PH Series Right Angle Through Hole PCB Header, 12 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded
    £64.99
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The JST S12B-PH-K-S (LF)(SN) is a PH series, 12 way, 2. 00 mm pitch, side entry type through hole shrouded header disconnectable crimp style connector (Wire-to-Board type connector). It is a low force insertion type connector. It is designed to meet the demand for the high-density connection of internal wires to PC boards.Reliable contactFully shrouded headerPrinted circuit board retention mechanismSurface mount model (SMT)Compact, highly reliable & low in cost
    Product Details
    JST
    50(Allparts)1755580
    S12B-PH-K-S (LF)(SN)
    10 Items

    Data sheet

    Manufacturer
    JST
    Current rating
    2.0A
    Contact material
    brass
    Contact plating
    Copper, Tin
    A-Supplier
    Allparts-UK/15/R-10
    Series
    PH
    Voltage Rating
    100.0 V , 800.0 V ac
    Mounting Type
    Through Hole
    Number of Contacts
    12
    Termination Method
    Solder
    Body Orientation
    Right Angle
    Series Number
    S12B
