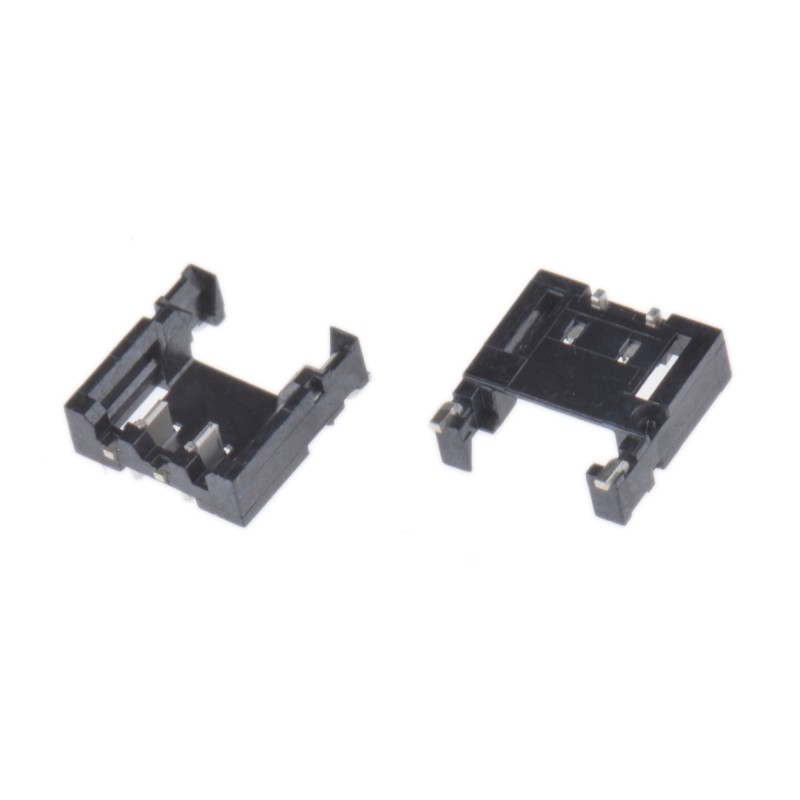

20 pcs - DF57H-4P-1.2V(21) Hirose DF57 Series Straight Surface Mount PCB Header, 4 Contact(s), 1.2mm Pitch, 1 Row(s), Shrouded

Hirose 1.2 mm DF57 Series Swing Lock Header Connectors1.2 mm DF57 series low profile header connectors with a reinforced swing lock design and a unique double locking mechanism for increased cable retention. The swing lock design incorporates both positive and friction locks within the connector body for a secure connection. A positive locking mechanism secures the header to the receptacle. The locking portion of the header engages with moulded lances on the mating crimp socket locking it firmly into place for a secure cable connection. A tactile click is provided when the lock is securely engaged. A complete electrical connection is made by the friction lock mechanism which also produces a tactile click when fully engaged. When mated the header and socket housing have a low profile height of 1.4 mm for an effective mating length of 0.42 mm. The housings of these DF57 series header connectors feature integral moulding that eliminates space between the terminals and the case to prevent solder wicking. Metal fittings on the housing provide extra solder retention preventing the housing from breaking away from the terminals due to tough cable routing.Features and BenefitsReinforced Swing Lock designDouble locking mechanism for increased cable retentionLow profile mating height of 1.4 mmMoulded housings for solder wicking preventionMetal fittings for increased PCB retentionProduct Application InformationThese 1.2mm DF57 series connectors with their low profile design and high current capability of 2.5 A are ideal for connecting LED drivers to lighting fixtures. Other applications include digital still cameras, digital video cameras, notebook PCs and tablet PCs.1.20mm Wire to Board - Hirose DF57
