    50 pcs - (Q)S4B-XH-SM4-TB (LF)(SN) JST XH Series Right Angle Surface Mount PCB Header, 4 Contact(s), 2.5mm Pitch, 1 Row(s), Shro
    • 50 pcs - (Q)S4B-XH-SM4-TB (LF)(SN) JST XH Series Right Angle Surface Mount PCB Header, 4 Contact(s), 2.5mm Pitch, 1 Row(s), Shro

    50 pcs - (Q)S4B-XH-SM4-TB (LF)(SN) JST XH Series Right Angle Surface Mount PCB Header, 4 Contact(s), 2.5mm Pitch, 1 Row(s), Shro

    50(Allparts)1755423
    JST

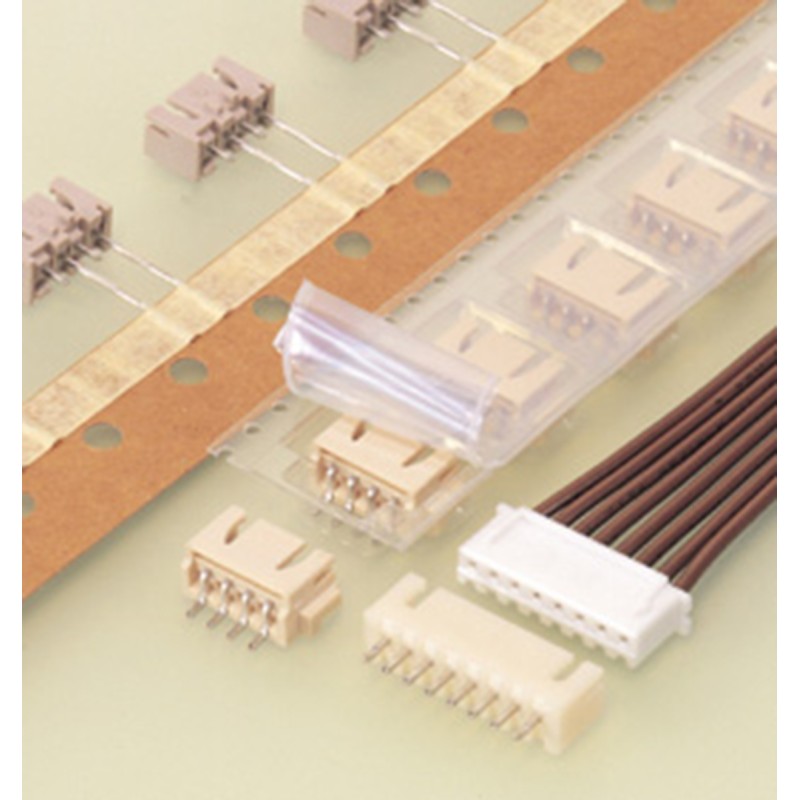

    50 pcs - (Q)S4B-XH-SM4-TB (LF)(SN) JST XH Series Right Angle Surface Mount PCB Header, 4 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded
    £46.70
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    The JST (Q)S4B-XH-SM4-TB (LF)(SN) is a XH series, 4 way, single row, 2.5mm pitch, right angle shrouded board to board connector with copper alloy contact material.Original folded beam contactBox-shaped shrouded headerHeader with a bossInterchangeabilityConforming to the HA terminal
    Product Details
    JST
    50(Allparts)1755423
    (Q)S4B-XH-SM4-TB (LF)(SN)
    10 Items

    Data sheet

    Manufacturer
    JST
    Current rating
    3.0A
    Contact material
    copper alloy
    Contact plating
    Copper, Tin
    A-Supplier
    Allparts-UK/15/R-10
    Series
    XH
    Voltage Rating
    250.0 V , 1000.0 V ac
    Mounting Type
    Surface Mount
    Number of Contacts
    4
    Termination Method
    Solder
    Body Orientation
    Right Angle
    Series Number
    S4B
