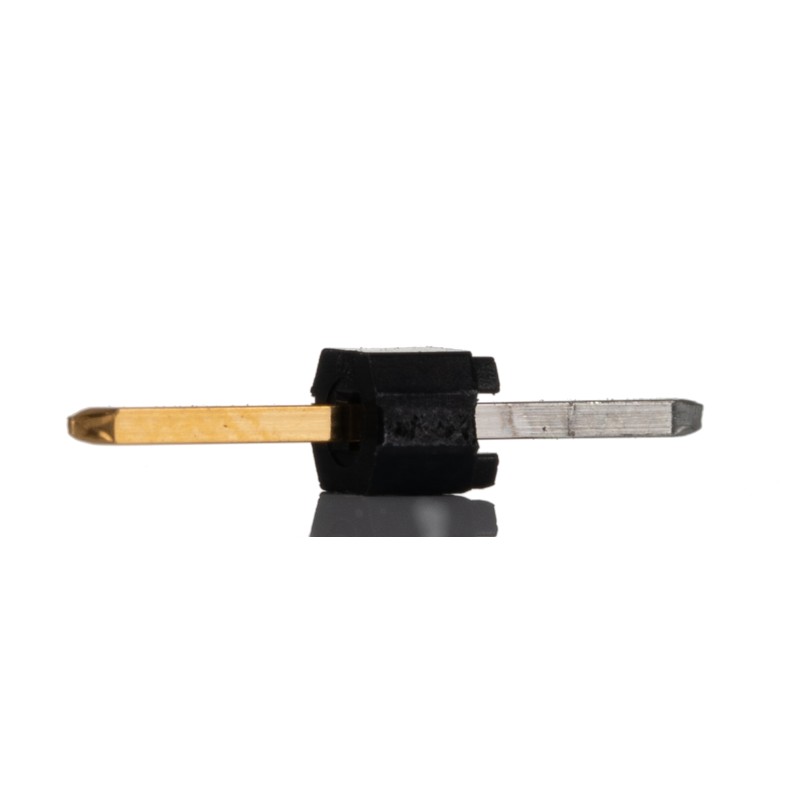

20 pcs - 90120-0761 Molex C-Grid III Series Straight Through Hole Pin Header, 1 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Molex C-Grid III 2.54 mm PCB Pin Headers - 90120, 90121, 90122 and 90131 Series90120, 90121, 90122 and 90131 series PCB headers that form part of the 2.54 mm C-Grid III interconnection system designed to meet the latest industry requirements. These C-Grid III PCB headers mate with C-Grid III series PCB sockets and crimp housings for use in both board to board and wire to board applications. The headers have a breakaway design and can be cut to size for additional design flexibility. The pins of these PCB pin headers have a high retention force for a secure mating connection. The contacts, once soldered to the PCB also have a high mechanical stability. These 2.54 mm C-Grid PCB pin headers are available in single and dual row, vertical and right angle mounting configurations to suit a range of interconnection requirements.Features and Benefits• Suitable for use in board to board and wire to board applications• Breakaway feature for design flexibility• High pin retention force for secure mating connection• High mechanical stability once solderedProduct Application InformationC-Grid III series connectors are suitable for use in the industrial, computer, medical, consumer, telecommunications and transportation industry. Applications include Desktop PCs, servers, monitors, medical equipment, white goods, exchange stations, industrial equipment and automotive safety systems and electronics.Molex Pin Header, Gold-Plated Brass Contacts, Polyester Body - C-Grid III Series - 90120-0761To reliably transmit signals to and from your circuit board, use this Molex pin header. Thanks to its five contacts, you can make multiple connections using one component, which frees up board space and speeds up wiring. As the unit mates with a compatible part up to 200 times, it's a practical choice for use with testing setups. For safety, its polyester body is non-conductive, so there's little chance of electric shocks reaching you.Features & Benefits• Vertical orientation for fuss-free installation• Flame-retardant, so it reduces the risk of fire spreading• High retention force ensures secure mating to shrug off jostling and vibrationApplications• Automotive safety systems• Telecommunications equipment• Transportation industry• Medical facilitiesAre the contacts on this pin header plated?Yes, its contacts are gold-plated to ensure optimal electrical flow and minimise the chance of corrosion.2.54mm Molex C-Grid III Range
