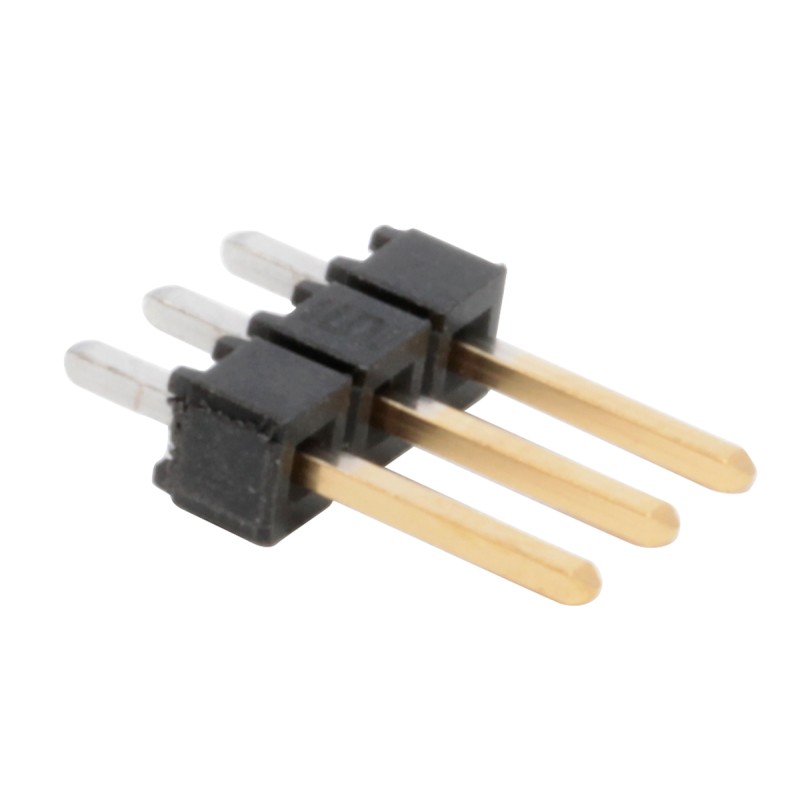

50 pcs - TSW-103-07-L-S Samtec TSW Series Straight Through Hole Pin Header, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Through Hole 2.54mm Square Post Header Terminal Strip - TSW SeriesTSW series PCB through hole board-to-board square post header terminal strips with a 2.54mm pitch, a black, glass filled polyester insulator and phosphor bronze terminals with gold plated contacts. These PCB board to board through hole square post header terminal strips are available in a variety of configurations including single and double row, straight and right angle and an option of platings and post lengths. The operating temperature range for these TSW series PCB through hole header terminals is -55 to 125°C.TSW PCB headers with part number TSW-xxx-xx-x-S are single row.TSW PCB headers with part number TSW-xxx-xx-x-D are double row.TSW PCB headers with part number TSW-xxx-xx-L-x have 0.25μm gold on post and matte tin on tail.TSW PCB headers with part number TSW-xxx-xx-G-x have 0.25μm gold on post and gold flash on balance.TSW PCB headers with part number TSW-xxx-07-x-x have a terminal height of 5.84mm and a tail length of 2.54mm.TSW PCB headers with part number TSW-xxx-08-x-x have a terminal height of 5.84mm and a tail length of 5.08mm.TSW PCB headers with part number TSW-xxx-14-x-x have a terminal height of 8.13mm and a tail length of 2.79mm.TSW PCB headers with part number TSW-xxx-17-x-x have a terminal height of 15.74mm and a tail length of 2.79mm.TSW PCB headers with part number TSW-xxx-23-x-x have a terminal height of 5.84mm and a tail length of 2.92mm.TSW PCB headers with part number TSW-xxx-26-x-x have a terminal height of 5.84mm and a tail length of 3.20mm.NoteThese TSW series PCB through hole board-to-board square post header terminals mate with the following:BCS standard box sockets - see stock number 766-6486 typicallyCES low profile socket strips - see stock number 766-6600 typicallySLW low profile socket strips - see stock number 767-9408 typicallySSM surface mount socket strips - see stock number 765-5357 typicallySSQ socket strips - see stock number 765-5468 typicallySSW socket strips - see stock number 765-5593 typicallySamtec Pin Header, 550V AC Voltage Rating, Glass-Filled Polyester Insulation Material - TSW Series - TSW-103-07-L-SSearching for a safe way to establish links on your PCB? Choose this pin header from Samtec. It has highly conductive phosphor bronze pins that carry current from wired adapters to your circuit board, so you can count on it to transmit signals without a hitch. Through-hole mounting ensures a firm link to your board that holds up in vibrating conditions, making this piece of kit fit for rugged environments. The unit is a master of many trades that mates with numerous connectors, including those in the SSW and SSQ series.Features & Benefits• Safe to use in challenging conditions, thanks to its wide operating temperature range between -55°C and +125°C• Current rating of 7.6A makes it suitable for medium-duty applications• Glass-filled polyester insulation prevents electric shocks for improved safety• Gold contact plating improves resistance to corrosion for long-lasting serviceApplications • Laptop and desktop computers• Consumer electronics• Industrial control systemsCan I reuse this pin header?Yes, you can reuse this unit. It's important to desolder it carefully to prevent damage to its pins.2.54mm Board to Board and Wire to Board - Samtec
