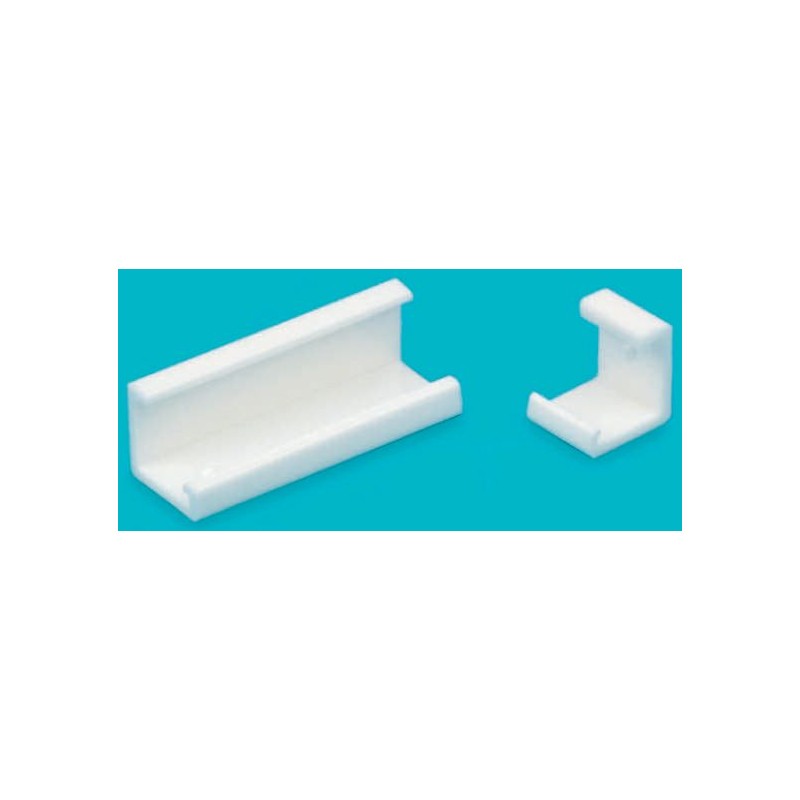

50 pcs - 1-640550-0 TE Connectivity for use with MTA-100 Series

Socket CoversA range of TE Connectivity slide on covers to protect terminated MTA sockets.Part numbers X-640550-X are dust covers for MTA-100 IDC closed end connectorsPart numbers X-640642-X are dust covers for MTA-100 IDC feed thru connectorsPart numbers X-643075-X are strain relief covers for MTA-100 IDC closed end connectorsPart numbers X-643077-X are strain relief covers for MTA-100 IDC feed-thru connectors.The dust covers are made from wite UL94V-0 rated polyesterThe strain relief covers are made from UL94V-2 rated nylonApprovalsUL (E28476), CSA (LR7189)TE Connectivity MTA-100 2.54mm Interconnect SystemMTA-100 (Mass Termination Assembly) 2.54 mm pitch connector system for labour and cost saving mass termination of wires in wire-to-board and wire-to-wire applications. These MTA-100 connectors are based on IDC (insulation displacement contact) technology allowing one-step assembly and eliminating the need for wire stripping saving both time and cost. Using production hand tooling these MTA-100 IDC connectors can be quickly assembled to 28 AWG to 22 AWG discrete wire or notched ribbon cable. The MTA-100 connector system consists of female IDC connectors and PCB headers. The housings of the IDC connectors are colour coded according to wire size.
