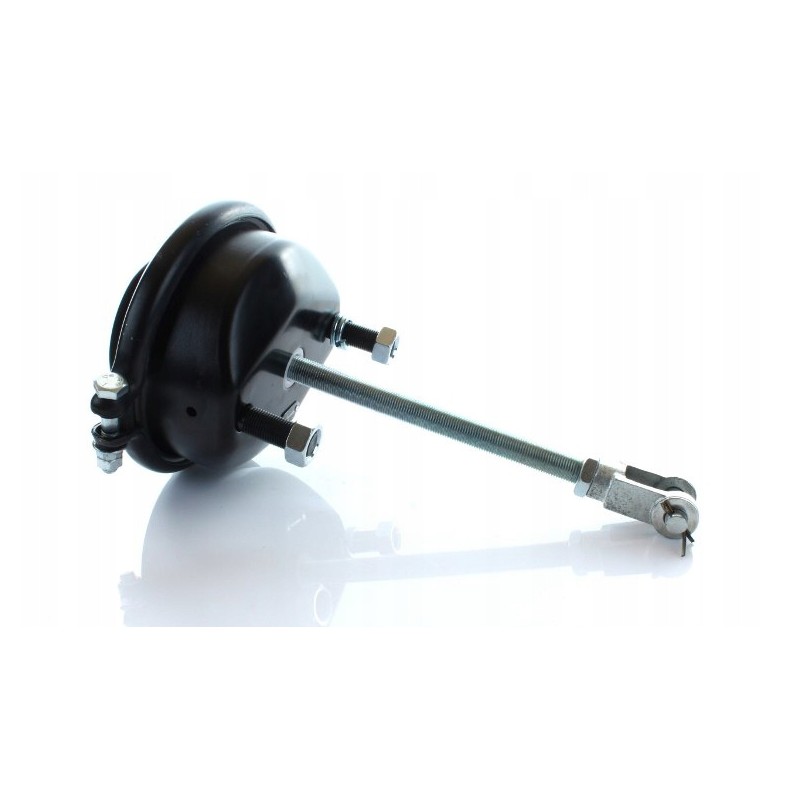

T20 diaphragm brake actuator 2 outputs MIZAR number: 38093
Pneumatic air diaphragm actuator
Application: Pronar agricultural trailers
Technical information: Air connection: M16x1.5 (side and rear)
Mounting screws: M16
Length of mounting screws: 40 mm
Mounting screw spacing: 120mm
Working pressure: 10 Bar
Stroke: 75mm
Connecting rod length: 186mm
Conrod thread: M16x1.5
Force: 8200N
Catalog number: 4231059000, 605109100, 0544414010, 83 4482 , A6984203721, A6994200724, ASX0014019, 200260, 3345107R1, 50945154, 945154, 175202, 79302, 502918601, 07010020, 5021170049, 17 38479, 526031200000, BBU5931, WA4231059000
MIZAR number: 38093
