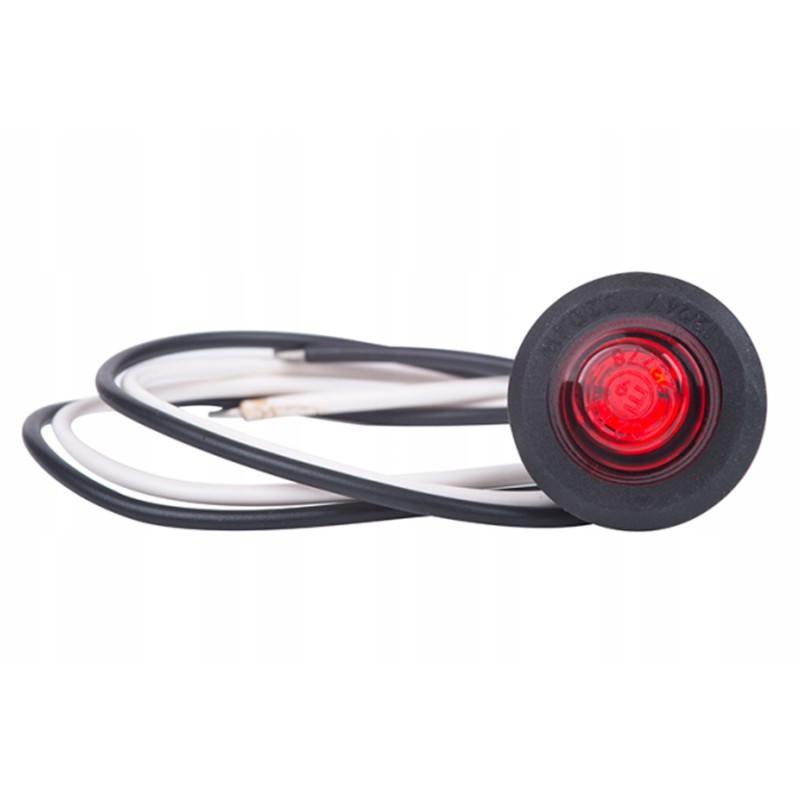

Horpol red LED rear trailer lamp

HORPOL LD 2630 rear marker lamp, LED 12/24V, red Original brand product: HORPOL LED rear marker lamp LD 2630 LED 12/24V, red

Model: HOR 109

Manufacturer's catalog number: LD 2630

Lamp functions: Position light

Light source: LED

Voltage [V]: 12-24

Functions: rear marker light (red)

Connection type: cable

Number of diodes: 1

Tightness class: IP68

Cable: 2x0.75 mm2 - 1 m

Material: plastic

Homologation: E9

Mounting side: universal

Mounting type: pressing into the hole

Power [W]: 0.2-0.4

Translations: lit, est, lav, rus, bul, slv, gre

Code: LD 2630

Single-function LED rear marker lamp manufactured by the Polish company Horpol. The lamp will operate at 12V or 24V. It is equipped with a 2x0.75 mm2 cable, 0.5 meters long. As a marker, it has one function, emitting a rear marker light (red).

Specific polarity: black wire (+), white wire (-).

Installation of the lamp to the body by pressing into a hole with a diameter of Φ19.

Connection method: two single electric wires.

Operating temperature range: from -30°C to 50°C.
