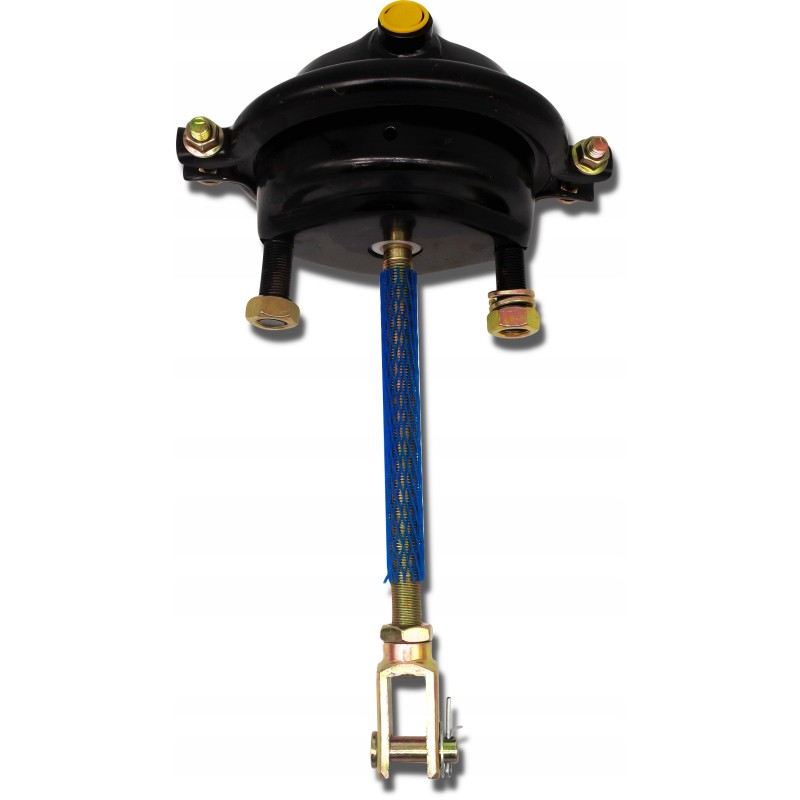

Pneumatic brake cylinder, 20 inch forks
  • Pneumatic brake cylinder, 20 inch forks
  • Pneumatic brake cylinder, 20 inch forks
  • Pneumatic brake cylinder, 20 inch forks

Pneumatic brake cylinder, 20 inch forks

15014662089022
£47.88
Quantity
5 Items

Description
Brake cylinder - pneumatic 20' with a fork secured with a cotter pin. SKRAW-MET CODE: [3211] The cylinder is used in pneumatic braking of trailers, semi-trailers and tow trucks. It is suitable for pneumatic control of the braking axle. The hydraulic cylinder is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

Ready for immediate use.Technical specifications: Connecting rod length - 210 mm

Spacing of mounting screws - 121 mm

Length of mounting screws - 40 mm

Thread of mounting screws - 2xM16x1. 5 mm

Thread on the connecting rod - M16x1.5 mm

Pneumatic connection thread - M16x1.5 mm

Surface treatment: galvanized/powder-coated,

Features: - High sensitivity and optimal tightness - Short reaction time upon impact - Resistance to pressure, pulsations and vibrations - High resistance to weather conditions, road salt and pollution. In addition, in our other auctions you will find other sets of pneumatic or hydraulic-pneumatic brake cylinders with mountings.

Product Details
15014662089022
GMP4231059000H
5 Items
New

Data sheet

Part Number
GMP4231059000H
Replacement part numbers
4231059000, 605109100, 0544414010
Brand
other (SM-D)
