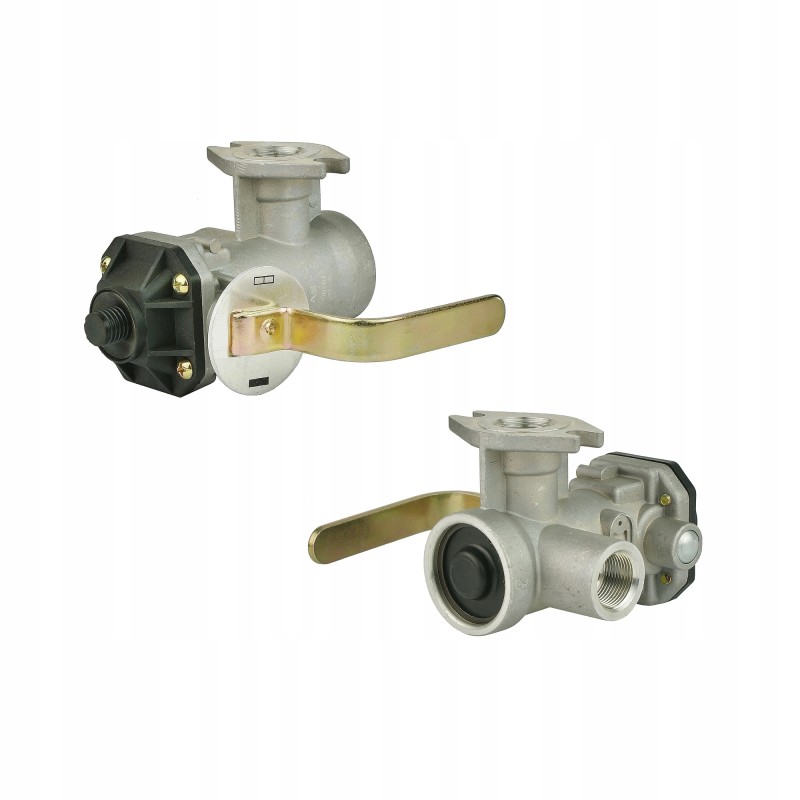

Braking force valve regulator d 35 d 47 d 50 d 55

3-RANGE TRAILER BRAKING FORCE REGULATORProduction:

Original product of the Hydrolider brand, symbol: 2.00.03.101

Application:

Universal braking force regulator with three ranges adjustable by lever position. Used in single- and dual-circuit, air and air-hydraulic braking systems. Allows, before driving, to manually adjust the braking force depending on the trailer load. Appropriately matched braking force to the weight of the trailer prevents the wheels from locking during braking, reducing wear of the braking system and tires.

Versatile use, including: in the production of agricultural and fruit trailers. The regulator fits, among others, for Autosan Sanok D-35, D-47, D-50 D-732, HL 8011, HL 6011 agricultural trailers.

Technical data:

Pneumatic connection thread - M22x1.5,

Spacing of mounting holes [mm] - 55

Weight: 0.67 kg

Regulation and principle of operation:

Range 1 - trailer without load, pressure range: 0.8–2.2 [bar]

Range 2 - trailer with 1/2 load, pressure range: 2, 8–3.7 [bar]

Range 3 - trailer full load, pressure range: tank pressure
