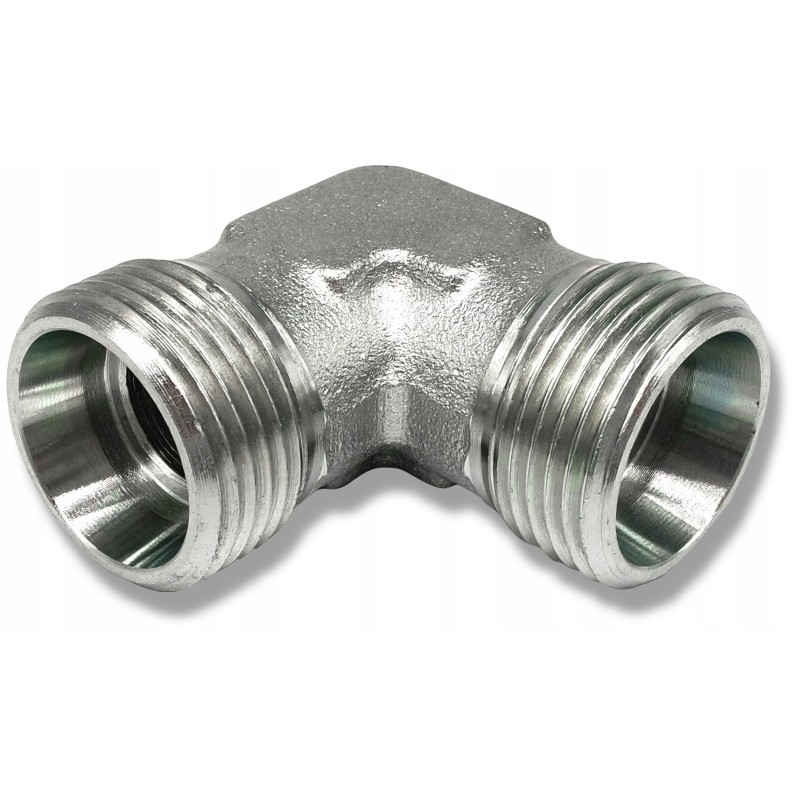

Hydraulic elbow connector 2x m16x1 5 10l external thread
  • Hydraulic elbow connector 2x m16x1 5 10l external thread
  • Hydraulic elbow connector 2x m16x1 5 10l external thread
  • Hydraulic elbow connector 2x m16x1 5 10l external thread
  • Hydraulic elbow connector 2x m16x1 5 10l external thread

Hydraulic elbow connector 2x m16x1 5 10l external thread

15013116350021
£16.92
Quantity
5 Items

Description
BB 90° hydraulic connector - elbow M16x1.5 - M16x1.5 10LKOD SKRAW MET: [2974] Manufacturer: SM-G (SKRAW MET GROUP) Elbow connector in a standardized light version with a self-sealing cone when tightened.

Due to the lack of a rubber seal ED and space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connectors that can be purchased at our other auctions.

Application: The connector is designed to connect two cables or to connect with other connectors with the same sealing cone - at an angle of 90°

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Nominal bore diameter: 8 mm

M1 thread: external metric M16x1.5

M2 thread: external metric M16x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connector version: light

Material: weldable, galvanized, corrosion-resistant steel

Product Details
15013116350021
2974.ZKOL
5 Items
New

Data sheet

Part Number
2974.ZKOL
Brand
other (SM-G)
