Ball hitch with travel stabilizer Knott 3000kg fi35 fi40 fi45 fi50

Ball hitch with travel stabilizer KNOTT KS30 3000kg Universal Fits overrun devices with slide diameter: 35,40,45,50mm from AL-KO, e.g. 251S and 251G or KNOTT, e.g. KF13, KF20 and KF27A

Ball hitch with KS30 stabilizer, used for driving stability. When a ball hitch with stabilizer is mounted on a trailer, when coupled with a lever, the internal springs are pressed against the friction linings so that the slipper clutch acts on the ball head of the towing vehicle and reduces trailer jerking. Roller clutches are not only suitable for use in simple trailers. Especially in caravans, ball couplings with stabilizer can lead to much greater stability and safety.

Technical data:

fastening screws: M12 horizontal holes at a distance of 45-55 m, cross holes at a distance of 40 mm

max. permissible total trailer weight: 3000 kg

max. permissible DC value of the combination: 27 kN

max. permissible load: 200 kg

possible installation on a bolt: Ø 35,40,45,50mm

Safety index: YES

Track stabilization: YES

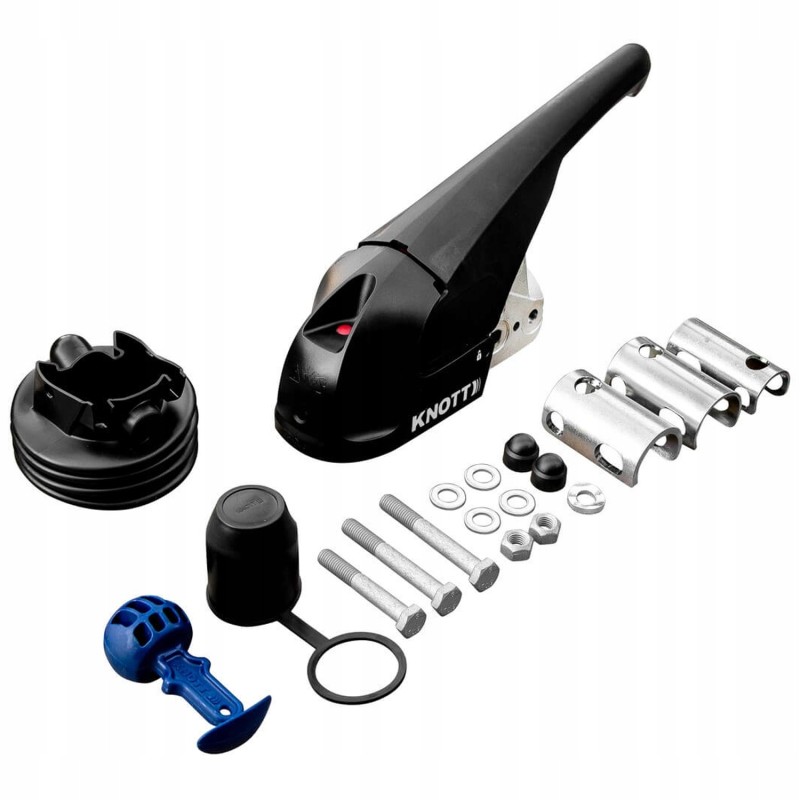

set includes: screws, rubber cover, hook cover
