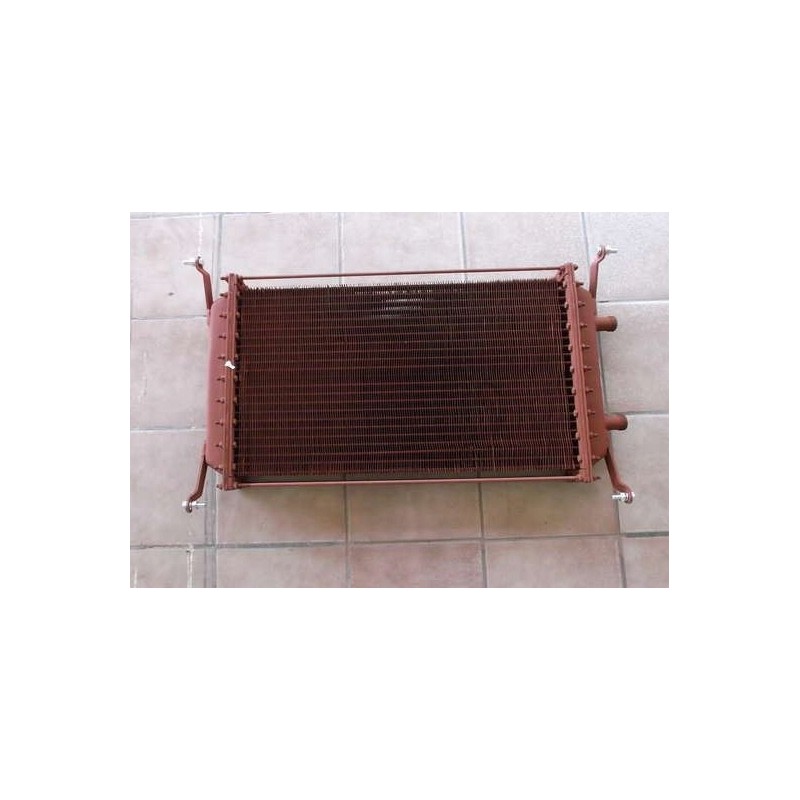

Name: COP 126
Oil cooler
PRODUCT APPLICATION:
The COP 126 oil cooler is intended for cooling the engine oil of the SW 400 and SW 266 type, used in generating sets, excavators and loaders.
DESIGN CHARACTERISTICS:
Tubular-plate oil cooler with forced oil and air flowing through the core, cooled by atmospheric air. The radiator core, tube plates, cooling plates and flat tubes are made of brass. The tanks and side clamps are made of sheet steel. The basic elements of the radiator (core, tanks, clamps) are screwed together.
TECHNICAL DATA:
Heat transfer area: 5.38 m2
Test pressure: 1.2 MPa
Product weight: 11.5 kg
