Pilot kipra hds lifts winch winches tipper

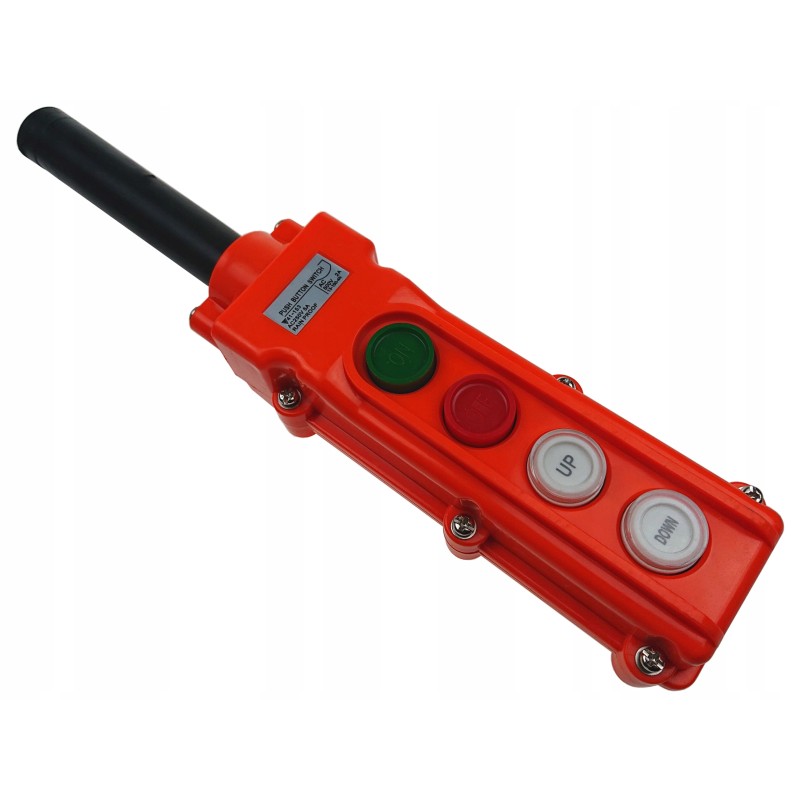

The winch elevator pilot button switch has a durable housing with four built-in buttons and equipped with a rubber cable cover.

UNIVERSAL APPLICATION - VERY LARGE VOLTAGE RANGE:

12v

24v

230v

APPLICATION EXAMPLES: AGRICULTURAL MACHINES

CONSTRUCTION MACHINES, EXCAVATORS

Forklifts

TRUCKS

Passenger cars

BUS

TIR

E.g.

Electric winches

Car lifts

Platforms, etc.

Kipras

HDS

Off-road winches

Housing dimensions : 190x68x49 mm

In addition to the 'UP' and 'DOWN' buttons, the remote control has two additional buttons: 'ON' and 'OFF', which makes it even more useful and safe.

After using the 'UP' and 'DOWN' buttons, we can press the ' OFF', the remote control will be inactive until the 'ON' button is pressed. This function ensures that the equipment is protected against accidental pressing of buttons, i.e. accidental control of the equipment to which it is connected.

Additional information: type of push buttons: 2x NO momentary + NO/NC stable (ON/OFF)

number of pins: 5

button diameter 20mm

Maximum voltage 250V

housing: hermetic IP65

Type of pins: screw terminals
