7 pin type S 24v socket, metal for a truck semi-trailer

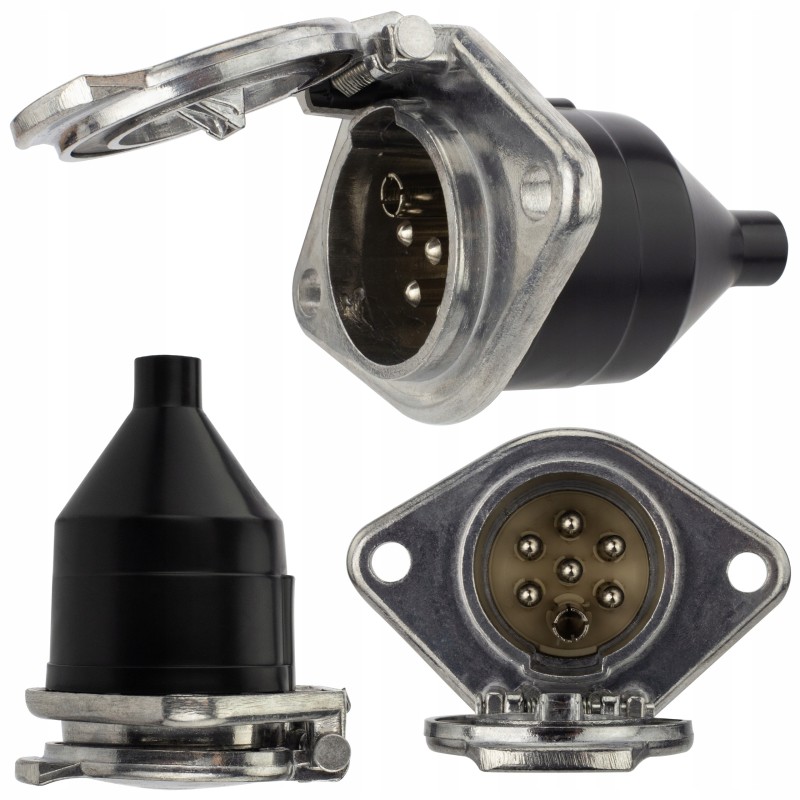

Metal 7-pin trailer socket, type S 24V. Universal 7-pin socket, type S, intended for connecting and powering the 24V electrical system in semi-trailers, heavy-duty trailers and other heavy vehicles.

It ensures a permanent connection of the trailer's electrical installation with the towing vehicle, ensuring uninterrupted operation of available functions (e.g. lighting).

The 7-pin 24V connector is currently the most common system used to make electrical connections between trailers and tractors in ordinary applications. It consists of an N-type connector (black housing) providing lighting functions and an S-type connector (white housing) providing additional functions. In addition to the color of the housing, the connectors are also distinguished by plug inserts and contact configuration.

The most important features: Universal, fits any type of trailer/trailer

The design allows for easy assembly and disassembly

Closed with a flap that protects against accidental opening and flooding in the event that the cable is not connected

Durable metal housing, resistant to damage and weather conditions

Metal contacts ensuring correct electrical connection in all conditions

Contact configuration prevents confusion between N and S connectors

Rubber cover protecting the interior against dirt (applied to the back of the housing)

Cable entry from the back of the socket through a hole located in the cover

Graphic marking of the purpose of individual screw terminals

Has two mounting holes

Specification: Manufacturer: HYBSZ

Symbol: GM24S

Type: 7-pin S-type trailer socket

Voltage: 24V

Connector: 7-pin S-type socket, male connector without pin (white)

Housing: metal

Connection: screwed

Cable assembly method: numbered screw terminals

Mounting holes: 2

Max cable diameter (rubber cover): 10.3 mm

Color: silver

Total length: 85 mm

Connector diameter: 45 mm

Spacing of mounting holes: 75 mm

Weight: 180 g

7-pin diagram 24V S-type connectors: Pole 1 (31) - Function: ground - Wire: white

Pole 2 - Function: ABS error indication / No assignment - Wire: black

Pole 3 - Function: reversing lights - Wire: yellow

Pole 4 (30) - Function: continuous power supply (constant voltage 24V) - Wire: red

Pole 5 - Function: control by ground - Wire: green

Pole 6 (15) - Function: power supply controlled by the ignition switch - Wire: brown

Pole 7 - Function: fog lights - Wire: blue

Application of HYBSZ brand products: trailers and transport trailers

tow trucks

semitrailers

tractors

trucks

caravans

campers

agricultural machinery

buses, coaches

automotive industry
