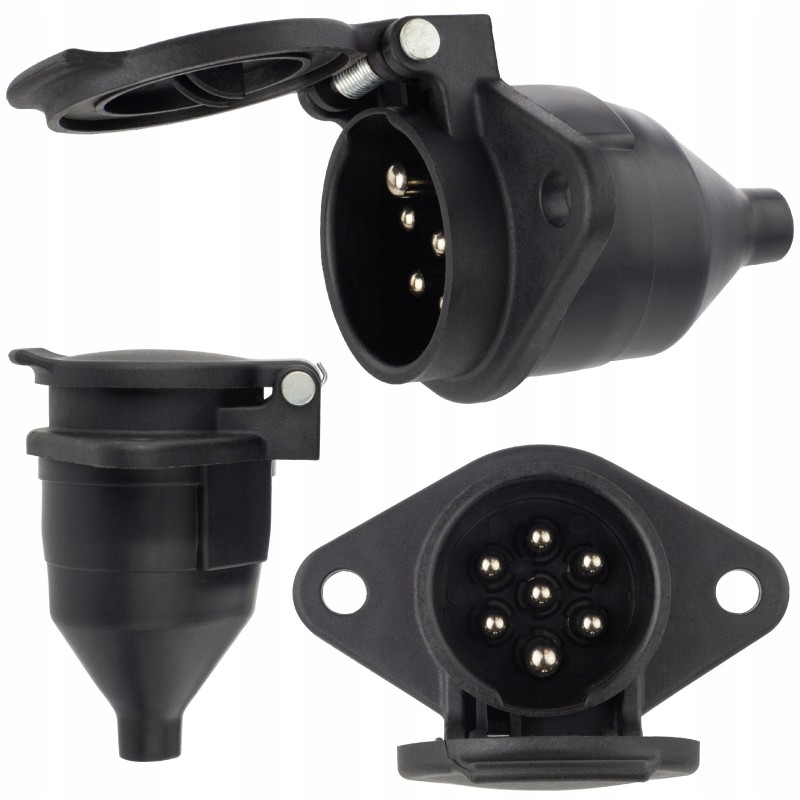

7 pin type n 24v socket for a truck trailer

Plastic 7-pin trailer socket, type N, 24V. Universal 7-pin socket, type N, intended for connecting and powering the 24V electrical system in semi-trailers, heavy-duty trailers and other heavy vehicles.

It ensures a permanent connection of the trailer's electrical installation with the towing vehicle, ensuring uninterrupted operation of available functions (e.g. lighting).

The 7-pin 24V connector is currently the most common system used to make electrical connections between trailers and tractors in ordinary applications. It consists of an N-type connector (black housing) providing lighting functions and an S-type connector (white housing) providing additional functions. In addition to the color of the housing, the connectors are also distinguished by plug inserts and contact configuration.

The most important features: Universal, fits any type of trailer/trailer

The design allows for easy assembly and disassembly

Closed with a flap that protects against accidental opening and flooding in the event that the cable is not connected

Durable, damage- and weather-resistant hard plastic housing

Metal contacts guarantee correct electrical connection in all conditions

Contact configuration prevents confusion between N and S connectors

Rubber cover protecting the interior against dirt (applied to rear of the housing)

Cable entry from the back of the socket through a hole located in the cover

Graphic marking of the purpose of individual screw terminals

Has two mounting holes

Specification: Manufacturer: HYBSZ

Symbol: GP24N

Type: 7-pin trailer socket N-type

Voltage: 24V

Connector: 7-pin N-type socket, male connector with pin (black)

Housing: solid plastic

Connection: screwed

Cable installation method: numbered screw terminals

Mounting holes : 2

Max cable diameter (rubber cover): 10.3 mm

Color: black housing / black flap

Total length: 85 mm

Connector diameter: 45 mm

Spacing of mounting holes: 75 mm

Weight : 140 g

Diagram of the 7-pin 24V N-type connector: Pole 1 (31) - Function: ground - Wire: white

Pole 2 (58L) - Function: left rear position lights, marker and contour lights and license plate light on the left - Cable: black

Pole 3 (L) - Function: left turn signal - Cable: yellow

Pole 4 (54) - Function: brake lights - Cable: red

Pole 5 (R) - Function: right turn signal - Cable: green

Pole 6 (58R) - Function: right rear position lights, side marker and contour lights and license plate light on the right - Cable: brown

Pole 7 - Function: Trailer brake control - Cable: blue

Application of HYBSZ brand products: trailers and transport trailers

car trailers

semitrailers

tractors

trucks

caravans

campers

agricultural machinery

buses, coaches

automotive industry

Polish production The presented article has been produced entirely in Poland. The highest quality materials were used in the production process, and the final product was subjected to demanding quality control.

The level of workmanship is unrivaled compared to goods imported from China or Taiwan.

About the manufacturer SH HYBSZ is a Polish manufacturer of electrical cables, spiral cables and cable harnesses. It offers high-quality products that meet the expectations of customers around the world. The company focuses on new production solutions using modern technological equipment.

Thanks to its highly developed finished products plant, the company supplies the market with parts for motor vehicles, especially trucks, semi-trailers, trailers and tow trucks. The factory produces, among others: spiral cables, pneumatic cables, plugs, sockets, battery and starter cables.
