EBS ABS socket 7 pin 24v for truck trailer semi-trailer

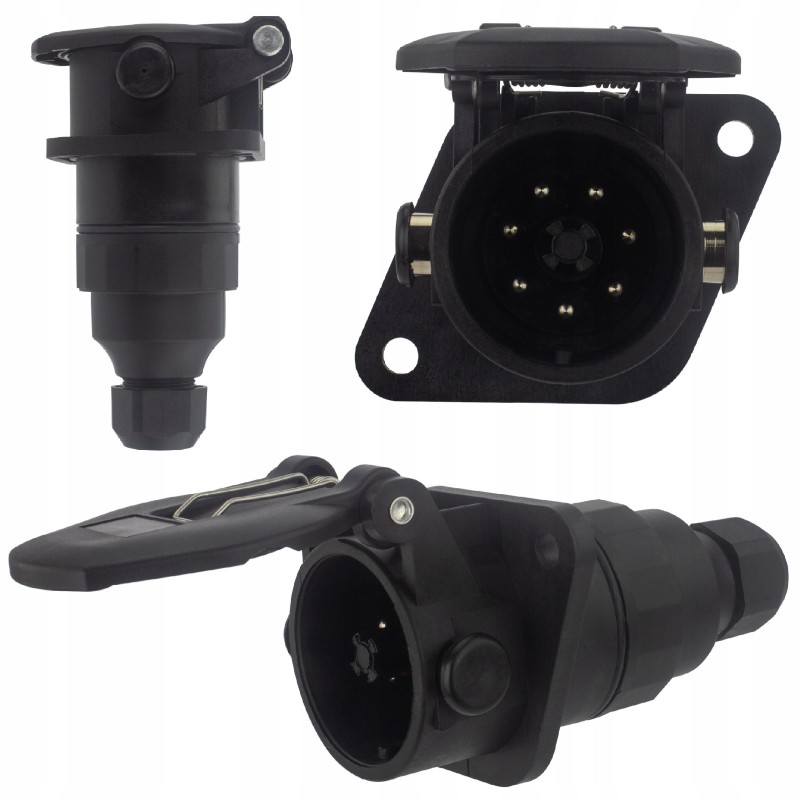

EBS/ABS 7-pin 24V twisted trailer socket. A universal 7-pin socket designed to connect and power the EBS/ABS system using 24V voltage in semi-trailers, heavy-duty trailers and other heavy vehicles.

It ensures a permanent connection of the electrical installation of the semi-trailer or trailer with the towing vehicle, e.g. a tractor unit, ensuring uninterrupted operation of EBS/ABS while driving. It is characterized by easy operation and connection.

The most important features: Universal, fits any type of semi-trailer/trailer

Closed with a flap with a strong spring, protecting against accidental opening and flooding when the cable is not connected

Durable, damage-resistant and weather conditions housing made of hard plastic

The design of the housing ensures easy assembly and disassembly

Metal contacts guarantee correct electrical connection in all conditions

The cable is inserted through a gland with a thick protective gasket

It has two mounting holes

Specification: Manufacturer : HYBSZ

Symbol: GEBS-S

Type: EBS/ABS 7-pin trailer socket

Voltage: 24V

Connector: 7-pin socket (male connector), for EBS/ABS system

Housing: solid material artificial

Connection: screwed

Cable assembly method: numbered screw terminals

Max cable diameter: 9.5 mm

Color: black

Plug length: 135 mm

Connector diameter: 54 mm

Weight: 210 g

EBS system EBS braking system Electronic Braking System, Polish electronic braking system) - an integrated, electronically controlled system that includes elements of the anti-lock braking system (ABS) and the anti-skid system (ASR). It ensures a much shorter reaction time to pressing the brake pedal, which directly translates into a significant shortening of the braking distance.

This system synchronizes the braking of the entire tractor unit with the trailer, and also allows for quick recognition of discrepancies in the braking process.

Its use in trucks with trailers and semi-trailers, as well as in buses, allows for a high level of safety when driving on various types of surfaces. Statistical data shows that accidents involving vehicles equipped with EBS braking systems are less common than with regular braking systems.

Diagram of the 7-pin 24V EBS connector: Pole 1 (30) - Function: constant voltage 24V for control valves - Cable : red

Pole 2 (15) - Function: 24V voltage to control the electronics via the ignition - Wire: black

Pole 3 (31) - Function: ground for pin 2 (electronic part) - Wire: yellow

Pole 4 ( 31) - Function: ground for pin 1 (hydraulic part) - Cable: brown

Pole 5 - Function: ABS error indication - Cable: white

Pole 6 - Function: CAN-H data exchange bus (for EBS and ABS) - Wire: green-white

Pole 7 - Function: CAN-L data exchange bus (for EBS and ABS) - Brown-white wire

A CAN control network is a CAN bus-based communications standard designed to enable microcontrollers, devices, and drivers to communicate with each other without a host computer. Often used in heavy-duty trucks for communication between a tractor unit and one or more trailers/semitrailers.

Application of HYBSZ brand products: trailers and transport trailers

tow trucks

semitrailers

tractors

trucks

caravan trailers

campers

agricultural machinery

buses, coaches

automotive industry

Polish production The presented article was produced entirely in Poland. The highest quality materials were used in the production process, and the final product was subjected to demanding quality control.

The level of workmanship is unrivaled compared to goods imported from China or Taiwan.

About the manufacturer SH HYBSZ is a Polish manufacturer of electrical cables, spiral cables and cable harnesses. It offers high-quality products that meet the expectations of customers around the world. The company focuses on new production solutions using modern technological equipment.

Thanks to its highly developed finished products plant, the company supplies the market with parts for motor vehicles, especially trucks, semi-trailers, trailers and tow trucks. The factory produces, among others: spiral cables, pneumatic cables, plugs, sockets, battery and starter cables.
