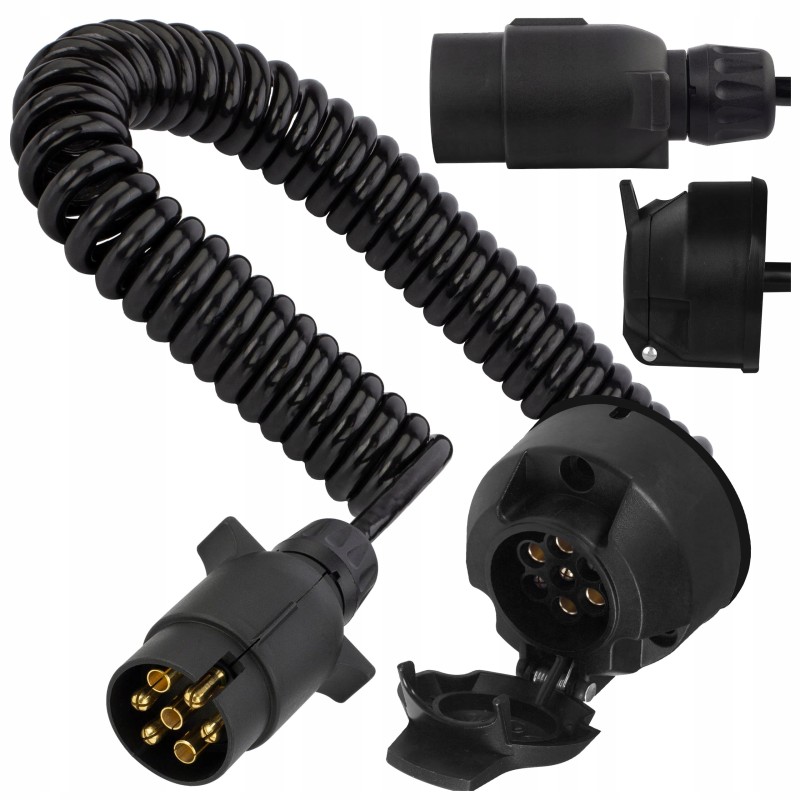

Spiral extension cable for trailer 7 pin, 3 m

Spiral extension cable for a trailer with plastic connectors (plug/socket) 7-pin 12V 3m High-quality spiral automotive cable, terminated with 7-pin connectors (plug and socket), used to connect and power the 12V electrical system in trailers, trailers and tow trucks. Provides a permanent connection ensuring uninterrupted operation of the lights while driving.

Thanks to its spiral structure, it extends up to 3 meters during use, preventing the cable from being dragged too long on the ground. Made of special thermoplastic PUR polyurethane, the cable can be used in the most extreme conditions.

The 7-pin harness is intended mainly for light trailers with a GVW not exceeding 750 kg.

Characteristics: Universal, fits any type of trailer or tow truck

Easy and quick installation

Extremely high durability, thanks to a very resistant PUR polyurethane coating

Extreme resistance cold, hot and weather conditions

High resistance to gasoline, oils, chemicals and lubricants

Very good fatigue strength

High resistance to mechanical damage, e.g. abrasion, cuts, pressure, impacts

Excellent recovery characteristics primary spiral

Solid plastic connectors

Metal contacts ensuring correct electrical connection

Specification: Manufacturer: HYBSZ

Symbol: PSP12/WG/3

Type: 7-wire spiral extension cable for trailers terminated with 7-pin plastic connectors

Operating voltage: 12V

Cable type: QLY-s

Cable insulation: PVC TI1 PVC in accordance with PN-EN-50363-3

External coating: PUR thermoplastic polyurethane in accordance with PN-EN-50363-10-2

Conductors: copper, class 5 according to PN-EN-60228

Cable cross-section: 6x0.75mm² + 1x1mm²

Outside diameter. cable: 8.3 mm

Total length: 3 m

Working length: 2.7 m

Unwinded spiral length: 28 cm

Outer diameter. coils: 35mm +- 5mm

Inner diameter. coils: 25mm +- 5mm

Plug housing: plastic

Connectors: 7-pin plug/socket

Connection: screwed

Color: black cable / black connectors

Plug length: 92 mm

Plug connector diameter: 36 mm

Socket length: 50 mm

Socket housing diameter: 71 mm

Weight: 470 g

Operating temperature: -40°C to +70°C

Scheme of the 7-pin 12V connector: Pole 1 (L ) - Function: left turn signal - Wire: yellow

Pole 2 (54G) - Function: fog lights - Wire: blue

Pole 3 (31) - Function: ground - Wire: white

Pole 4 (R) - Function : right turn signal - Cable: green

Pole 5 (58R) - Function: right side lights - Cable: brown

Pole 6 (54) - Function: brake lights - Cable: red

Pole 7 (58L) - Function: left side lights - Cable: black

QLY-s spiral cable made of thermoplastic polyurethane PUR Spiral cables are products subjected to a special process that gives them the shape and properties of a spring, which works within a certain range of distances, maintaining its shape even after many thousands of stretching cycles. Cables of this type are used to connect receivers whose distances change during operation, and for many reasons it is important that the cable does not hang loosely, which would expose it to damage or interfere with proper operation.

The use of the reliable QLY-s design allows the cable to be used in the most extreme conditions. The PUR polyurethane coating is a special, flexible mixture characterized by exceptional resistance, which prevents the effects of harmful weather conditions, low and high temperatures, mechanical damage, and also ensures insensitivity to a number of substances, e.g. gasoline, oils, chemicals and lubricants.

Q - PUR polyurethane coating

L - flexible cable

Y - PVC insulation

S - automotive cable

Applications of HYBSZ brand products: trailers and transport trailers

tow trucks

semitrailers

caravans

campers

machines agricultural

automotive industry

Polish production The presented article was produced entirely in Poland. The highest quality materials were used in the production process, and the final product was subjected to demanding quality control.

The level of workmanship is unrivaled compared to goods imported from China or Taiwan.

About the manufacturer SH HYBSZ is a Polish manufacturer of electrical cables, spiral cables and cable harnesses. It offers high-quality products that meet the expectations of customers around the world. The company focuses on new production solutions using modern technological equipment.

Thanks to its highly developed finished products plant, the company supplies the market with parts for motor vehicles, especially trucks, semi-trailers, trailers and tow trucks. The factory produces, among others: spiral cables, pneumatic cables, plugs, sockets, battery and starter cables.
