ADR socket 15 pin 24v for truck trailer semi-trailer

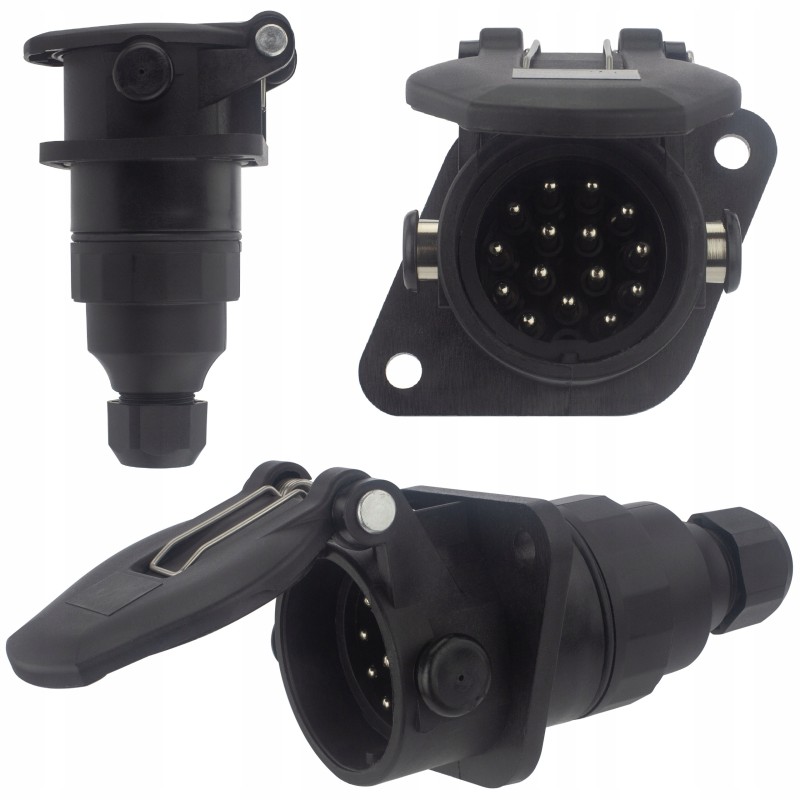

ADR 15-pin 24V twisted trailer socket. A universal 15-pin socket designed to connect and power the 24V electrical system in semi-trailers, heavy-duty trailers and other heavy vehicles.

It ensures a permanent connection of the semi-trailer's electrical installation with the towing vehicle (e.g. tractor unit), ensuring the implementation of all lighting functions and additional functions such as the axle lifting mechanism, brake pad wear sensor, or hydraulic brake indicator.

The 15-pin connector is a modern system used by many renowned truck manufacturers as part of the original factory equipment. It is increasingly replacing older generations of 7-pin N and S type connectors. The product meets the requirements of ADR applications for the transport of dangerous goods.

The most important features: Universal, fits any type of semi-trailer/trailer

Closed with a flap with a strong spring, protecting against accidental opening and flooding if the cable is not connected

Durable, damage- and weather-resistant hard plastic housing

The housing design ensures easy assembly and disassembly

Metal contacts guarantee correct electrical connection in all conditions

The cable is inserted through a gland with a thick security gasket

Has two mounting holes

Specification: Manufacturer: HYBSZ

Symbol: GADR-S

Type: ADR 15-pin trailer socket

Voltage: 24V

Connector: 15-pin socket ( male connector), meeting ADR requirements

Housing: solid plastic

Connection: screwed

Cable assembly method: numbered screw terminals

Mounting holes: 2

Max cable diameter: 9.5 mm

Typical cables for this connectors: 12x1.5mm² + 3x2.5mm² / 12x1mm² + 3x2.5mm² / 12x0.75mm² + 3x1.5mm²

Color: black

Plug length: 135 mm

Connector diameter: 54 mm

Weight: 275 g

Transport of hazardous materials ADR Transport of hazardous materials (e.g. flammable) in road transport is determined by appropriate regulations. They are defined by ADR, i.e. the international convention concerning the transport of dangerous goods.

The ADR agreement describes in detail the rules for transporting hazardous materials, indicating the conditions under which it is to be carried out, and includes provisions on packaging, cargo securing and marking of hazardous substances.

In Poland, the transport of hazardous materials is allowed only by qualified persons who meet the requirements of the Transport and Road Traffic Act and have completed an ADR course ending with an exam.

In road transport in countries covered by the ADR agreement, vehicles carrying dangerous substances should be equipped with appropriate equipment and marked with standardized ADR plates.

Diagram of the 15-pin 24V connector: Pole 1 (L) - Function: left turn signal - Cable: yellow

Pole 2 ( R) - Function: right turn signal - Wire: green

Pole 3 - Function: fog lights - Wire: blue

Pole 4 (31) - Function: ground (-) for pins 1-3 and 5-12 - Wire: white

Pole 5 (58L) - Function: left rear position lights, marker and parking lights and license plate light on the left - Cable: black

Pole 6 (58R) - Function: right rear position lights, marker and contour lights and license plate light on the right - Wire: brown

Pole 7 (54) - Function: brake lights - Wire: red

Pole 8 - Function: reversing lights, reversing lock - Wire: pink

Pole 9 (30) - Function: continuous power supply (constant voltage 24V) - Wire: orange

Pole 10 - Function: brake pad wear sensor - Wire: gray

Pole 11 - Function: hydraulic brake indicator - Wire: black and white

Pole 12 - Function: axle lifting mechanism - Wire: blue-white

Pole 13 (31) - Function: ground (-) for pin 14 and 15 - Wire: red-white

Pole 14 - Function: CAN-H data exchange bus ( not for EBS or ABS) - Cable: green-white

Pole 15 - Function: CAN-L data exchange bus (not for EBS or ABS) - Cable: brown-white
