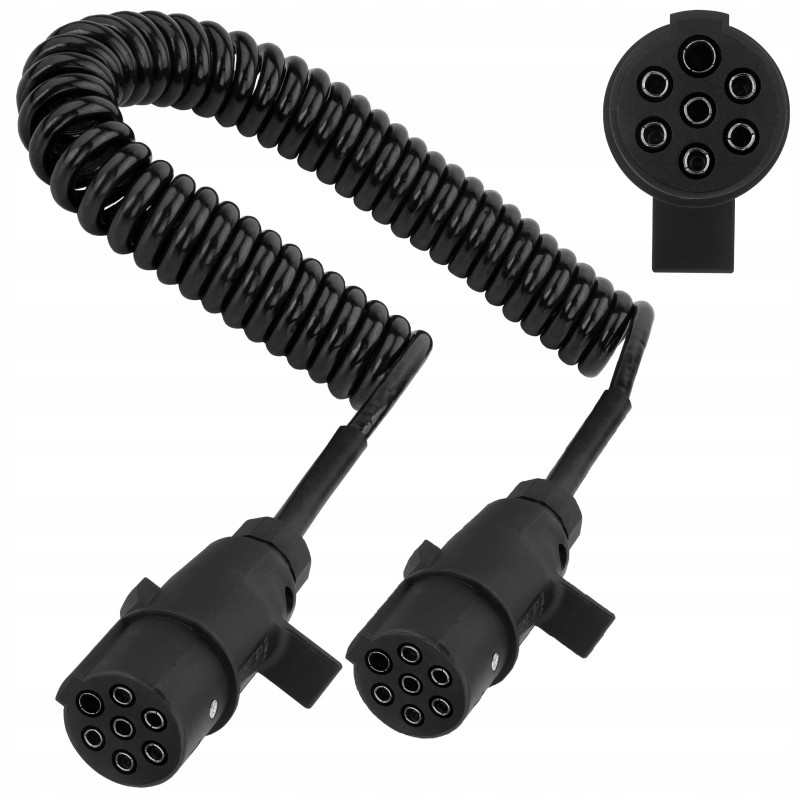

Spiral cable for trailer 7 pin type n 24v 4 5m

Spiral cable for a semi-trailer with plastic 7-pin N-type plugs 24V 4.5m High-quality spiral automotive cable, terminated with 7-pin N-type plugs, used to connect the 24V electrical installation between a tractor and a semi-trailer or a heavy-duty trailer. Provides a permanent connection ensuring uninterrupted operation of available functions (e.g. lighting).

Thanks to its spiral construction, it extends up to 4.5 meters during use, preventing the cable from being dragged too long on the ground. Made of special thermoplastic PUR polyurethane, the cable can be used in the most extreme conditions.

The 7-pin 24V connector is currently the most common system used to make electrical connections between trailers and tractors in ordinary applications. It consists of an N-type connector (black housing) providing lighting functions and an S-type connector (white housing) providing additional functions. In addition to the color of the housing, the connectors are also distinguished by plug inserts and contact configuration.

The most important features: Universal, fits any type of semi-trailer/trailer

Easy and quick installation, the cable is ready to be connected

Extremely high durability, thanks to a very resistant polyurethane coating PUR

Extreme resistance to cold, heat and weather conditions

High resistance to gasoline, oils, chemicals and lubricants

Very good fatigue strength

High resistance to mechanical damage, e.g. abrasion, cuts, pressure, impacts

Excellent return to the original spiral characteristics

Solid plastic plugs

Metal contacts ensuring correct electrical connection

Contact configuration prevents confusion between N and S connectors

Specification: Manufacturer: HYBSZ

Symbol: PSNP4.5

Type: 7-core spiral cable for trailers terminated with plastic 7-pin N-type plugs

Operating voltage: 24V

Cable type: QLY-s

Cable insulation: PVC TI1 PVC in accordance with PN-EN-50363-3

Outer sheath : PUR thermoplastic polyurethane according to PN-EN-50363-10-2

Conductors: copper, class 5 according to PN-EN-60228

Cable cross-section: 6x1mm2 + 1x1.5mm2

Outside diameter. cable: 8.8 mm

Total length: 4.5 m

Working length: 4.2 m

Unwinded spiral length: 42 cm

Outer diameter. coils: 38mm +- 5mm

Inner diameter. coils: 27mm +- 5mm

Plug housing: plastic

Connectors: 7-pin N-type plug / plug, pinless female connector (black)

Connection: twisted

Color: black cable / black connectors

Length plugs: 110 mm

Connector diameter: 37 mm

Weight: 720 g

Operating temperature: -40°C to +70°C

Scheme of the 7-pin 24V N-type connector: Pole 1 (31) - Function: ground - Cable: white

Pole 2 (58L) - Function: left rear position lights, side marker and contour lights and license plate light on the left - Cable: black

Pole 3 (L) - Function: left turn signal - Cable: yellow

Pole 4 (54) - Function: brake lights - Wire: red

Pole 5 (R) - Function: right turn signal - Wire: green

Pole 6 (58R) - Function: right rear position lights, side marker lights and contour and license plate lighting on the right - Cable: brown

Pole 7 - Function: Trailer brake control - Cable: blue

QLY-s spiral cable made of PUR thermoplastic polyurethane Spiral cables are products subjected to a special process that gives them their shape and properties a spring that works within a certain range of distances, maintaining its shape even after many thousands of stretching cycles. Cables of this type are used to connect receivers whose distances change during operation, and for many reasons it is important that the cable does not hang loosely, which would expose it to damage or interfere with proper operation.

The use of the reliable QLY-s design allows the cable to be used in the most extreme conditions. The PUR polyurethane coating is a special, flexible mixture characterized by exceptional resistance, which prevents the effects of harmful weather conditions, low and high temperatures, mechanical damage, and also ensures insensitivity to a number of substances, e.g. gasoline, oils, chemicals and lubricants.

Q - PUR polyurethane coating

L - flexible cable

Y - PVC insulation

S - automotive cable

Applications of HYBSZ brand products: trailers and transport trailers

tow trucks

semitrailers

tractors

trucks

trailers campers

campers

agricultural machinery

buses, coaches

automotive industry

Polish production The presented article was produced entirely in Poland. The highest quality materials were used in the production process, and the final product was subjected to demanding quality control.

The level of workmanship is unrivaled compared to goods imported from China or Taiwan.

About the manufacturer SH HYBSZ is a Polish manufacturer of electrical cables, spiral cables and cable harnesses. It offers high-quality products that meet the expectations of customers around the world. The company focuses on new production solutions using modern technological equipment.

Thanks to its highly developed finished products plant, the company supplies the market with parts for motor vehicles, especially trucks, semi-trailers, trailers and tow trucks. The factory produces, among others: spiral cables, pneumatic cables, plugs, sockets, battery and starter cables.
