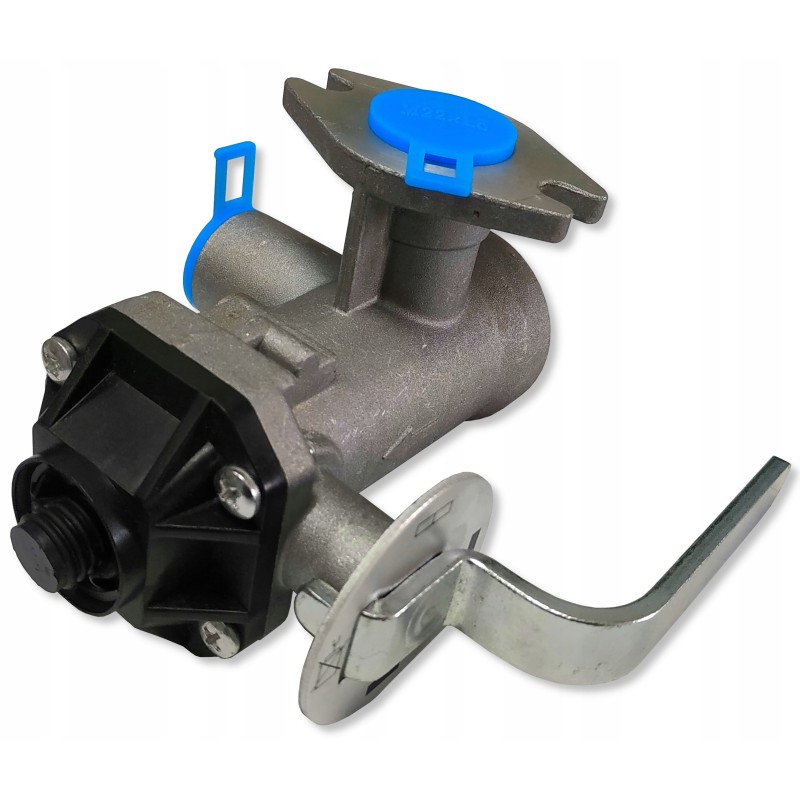

Braking force regulator d47 d50 d35 4 range

BRAKING FORCE REGULATOR 4 - RANGE[0300]

The braking force regulator is used in Autosan Sanok D-35, D-47, D-50 D-732, HL 8011, HL 6011 trailers

It is used in trailer air braking systems.

Thanks With this type of regulators, we are able to manually set the range of braking force values (depending on the loading condition) before starting driving.

Technical specifications: Setting range without load (Bar) - empty - 0.8 - 2.2

Setting range 1/2 load (Bar) - 2.8 - 3.7

Setting range full load (Bar) - pressure in the tank

Pneumatic connection thread - M22x1.5

Spacing of mounting holes (mm) - 55
