AUCTION SUBJECT:

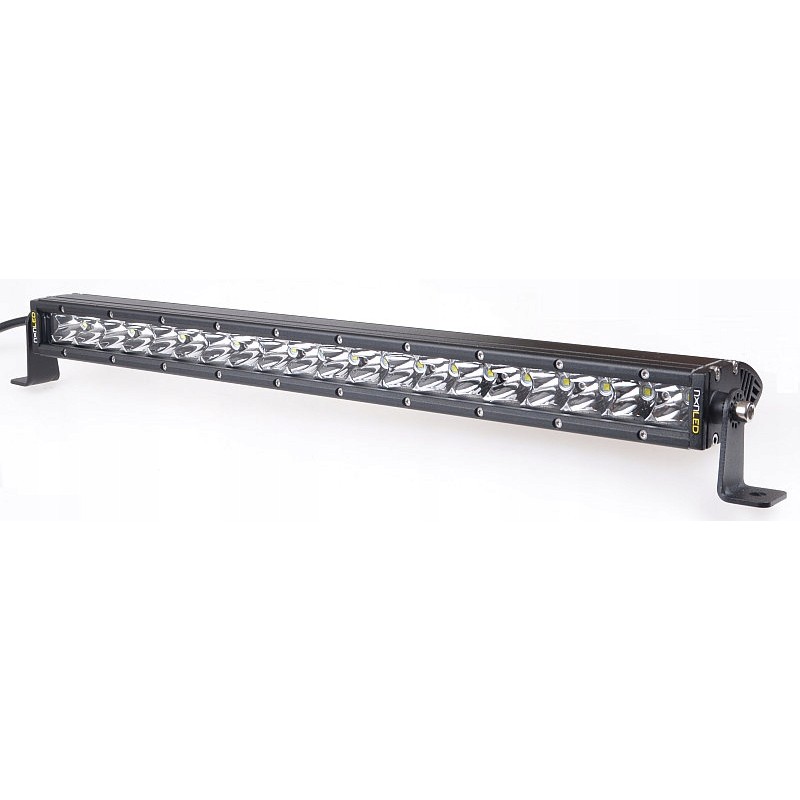

Small-size, waterproof, energy-saving and economical lamp with a power of 100W (20x 5W CREE LED) with spot light

NMLB970-SP

A solid and efficient series of LED lamps in small-size housings only 41mm thick with a power of 30-240W, available with wide flood light or long-range spot light

Other auctions include an additional hermetic AMP 2x 1.5mm2 power connector

Sleek, hermetic aluminum housing that is also a radiator and steel, adjustable handles.

Application: external front or side work lighting off-road vehicles, special vehicles, construction and agricultural machines

You don't buy blindly from us - you can see how the offered product shines!!!

In the photo, the offered lamp is mounted at a height of approx. 75cm

In the photo, the offered lamp is mounted at a height of approx. 75cm

NMLB970-SP lamp parameters:

- lamp power: 100W (equivalent to traditional incandescent light with a minimum power of 500W)

- supply voltage: 10V-30V

- current consumption at 12V: max 8.35A

- actual current consumption when powered by 13.8V : 5.6A

- light source: 20x 5W CREE XP-G2 LED

- lighting type: spot light

- color temperature: 6000K daylight white

- theoretical* light flux: 7000lm

- protection level: IP67

- service life: 30,000h

- operating temperature: -40 to +60 oC

- housing: entirely made of aluminum alloys

- front glass: polycarbonate

- dimensions: panel width without fixings 517mm, depth 82mm, height 41mm

- lamp dimensions with holders: width 588mm, height 65mm

- spacing of mounting holes: 568mm

- weight: 1.9kg

- power supply: due to relatively low power consumption, no additional relays are required

- set includes: lamp with wiring approx. 40cm, steel holders/feet , stainless steel screws, Allen key

*based on manufacturer's data

Spot optics
