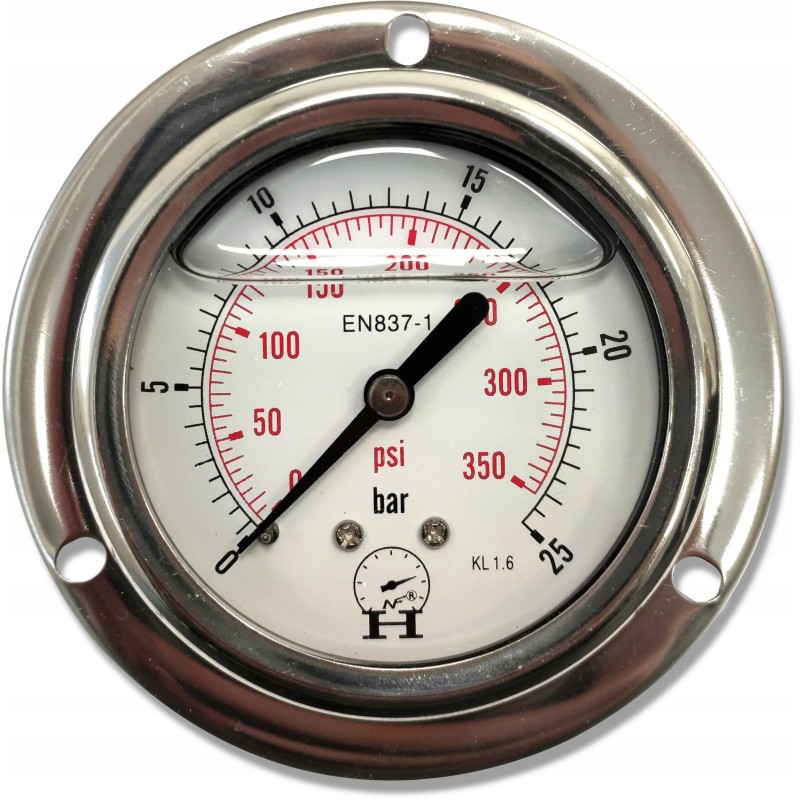

Panel pressure gauge 0 25 bar rear connection

GLYCERINE MANOMETER 63mm WITH CONNECTION AT THE REAR AND MOUNTING FLANGE SKRAW-MET CODE: [2792]PRESSURE MEASURING RANGE: 0 - 25 Panel barmanometers have an external flange with holes allowing for frontal mounting.

Manometers intended for measuring the pressure of liquids in closed systems for measuring the pressure of gases and liquids that do not react with copper alloys. The pressure gauge is filled with glycerin inside. The glycerin manometer differs from standard manometers by having an interior filled with glycerine, which secures and protects the pointer against vibrations and oscillations.

Glycerin also allows you to increase the level of measurement accuracy.

It has a plug used to equalize the pressure inside the manometer with the atmospheric pressure.

Application: Perfect for control cabinets, operator panels, on panels of machines and devices.

The glycerine pressure gauge is perfect for hydraulically powered machines and devices.

It is widely used in hydraulic systems in agriculture, fruit growing, forestry, construction and broadly understood industry.

(REVIEW PHOTO - depending on the delivery, the pressure gauge may differ visually, but its functionality is identical to the description.) Technical data: Pressure measurement range: 0 - 25 Bar

Outer diameter of the mounting flange: 84 mm

Spacing of mounting holes: 75 mm

Diameter of mounting holes : 3x 4 mm

Outer diameter of the clock: 63 mm

Thickness of the clock: 30 mm

Connection port thread [BSP]: 1/4' (requires a special connection available on our other auctions)

Operating temperature: -10°C to + 50°C

Material: Steel housing, glass viewfinder
