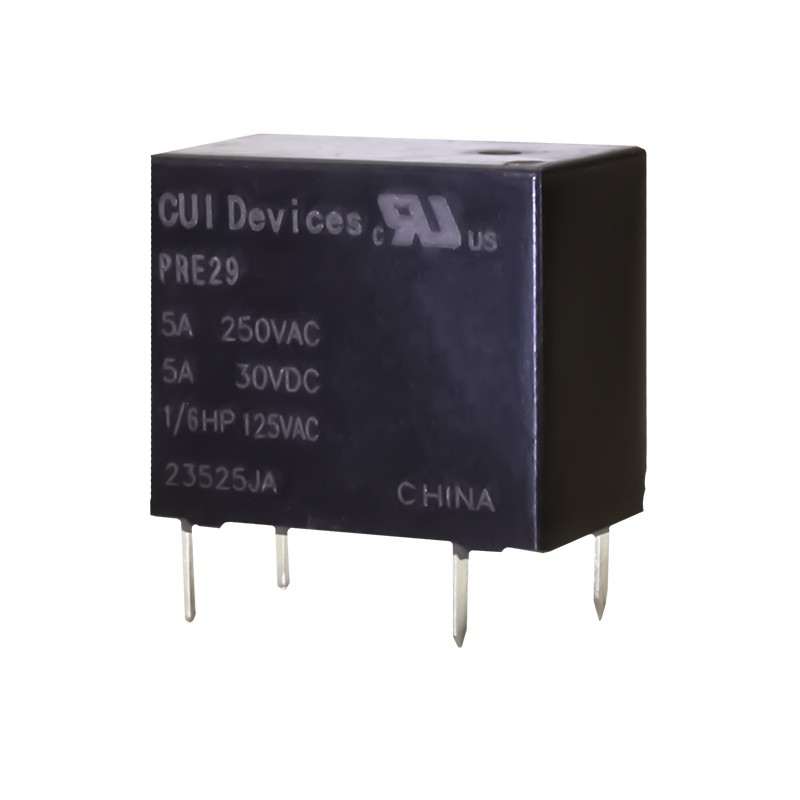

    10 pcs : PRE29-3V-S-450-1A-E - 18.4 X 10.2 X 15.5 MM, 9 V, 5 A,
    • 10 pcs : PRE29-3V-S-450-1A-E - 18.4 X 10.2 X 15.5 MM, 9 V, 5 A,

    10 pcs : PRE29-3V-S-450-1A-E - 18.4 X 10.2 X 15.5 MM, 9 V, 5 A,

    10electronicpartsUK2223PRE293VS4501AEND
    £37.48
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
    Product Details
    CUI Devices
    10electronicpartsUK2223PRE293VS4501AEND
    PRE29-3V-S-450-1A-E
    3 Items

    Data sheet

    Manufacturer
    CUI Devices
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    Silver Tin Oxide (AgSnO)
    Operate time
    8 ms
    Series
    PRE29
    Mounting Type
    Through Hole
    Coil Resistance
    20 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    250VAC, 30VDC - Max
    Features
    -
    Coil Voltage
    3VDC
    Termination Style
    PC Pin
    Grade
    -
    Packaging
    Box
    Qualification
    -
    Contact Form
    SPST-NO (1 Form A)
    Contact Rating (Current)
    5 A
    Load - Max Switching
    1250VA, 150W
    Coil Current
    150 mA
    Coil Type
    Non Latching
    Seal Rating
    Sealed - Fully
    Coil Insulation
    Class B
    Must Operate Voltage
    2.1 VDC
    Must Release Voltage
    0.15 VDC
    Release Time
    4 ms
