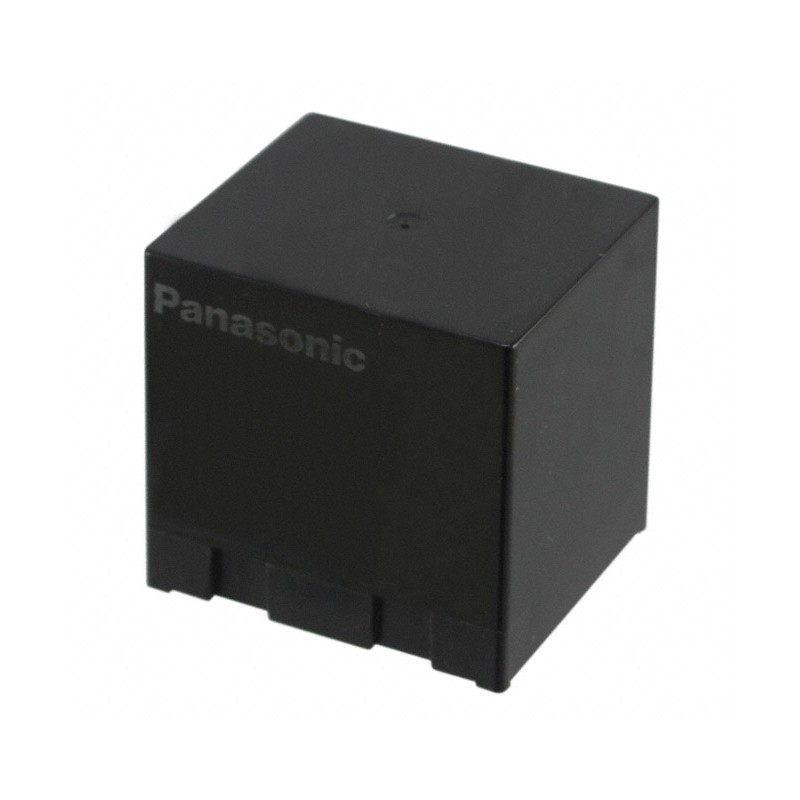

    1 pcs : HE1AN-P-DC24V - RELAY GEN PURPOSE SPST 30A 24V
    • 1 pcs : HE1AN-P-DC24V - RELAY GEN PURPOSE SPST 30A 24V
    • 1 pcs : HE1AN-P-DC24V - RELAY GEN PURPOSE SPST 30A 24V

    1 pcs : HE1AN-P-DC24V - RELAY GEN PURPOSE SPST 30A 24V

    1electronicpartsUK2551644ND
    £40.77
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
    Product Details
    Panasonic Electric Works
    1electronicpartsUK2551644ND
    HE1AN-P-DC24V
    3 Items

    Data sheet

    Manufacturer
    Panasonic Electric Works
    Operating temperature
    -50°C ~ 55°C
    Part status
    Active
    Contact material
    Silver Tin Oxide (AgSnO)
    Operate time
    30 ms
    Series
    HE
    Mounting Type
    Through Hole
    Coil Resistance
    300 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    277VAC, 30VDC - Max
    Features
    -
    Coil Voltage
    24VDC
    Termination Style
    PC Pin
    Grade
    -
    Packaging
    Bulk
    Qualification
    -
    Contact Form
    SPST-NO (1 Form A)
    Approval Agency
    CSA, TUV, VDE, UR
    Contact Rating (Current)
    30 A
    Load - Max Switching
    8310VA, 900W
    Coil Current
    80 mA
    Coil Type
    Non Latching
    Seal Rating
    -
    Coil Insulation
    -
    Must Operate Voltage
    16.8 VDC
    Must Release Voltage
    2.4 VDC
    Release Time
    10 ms
