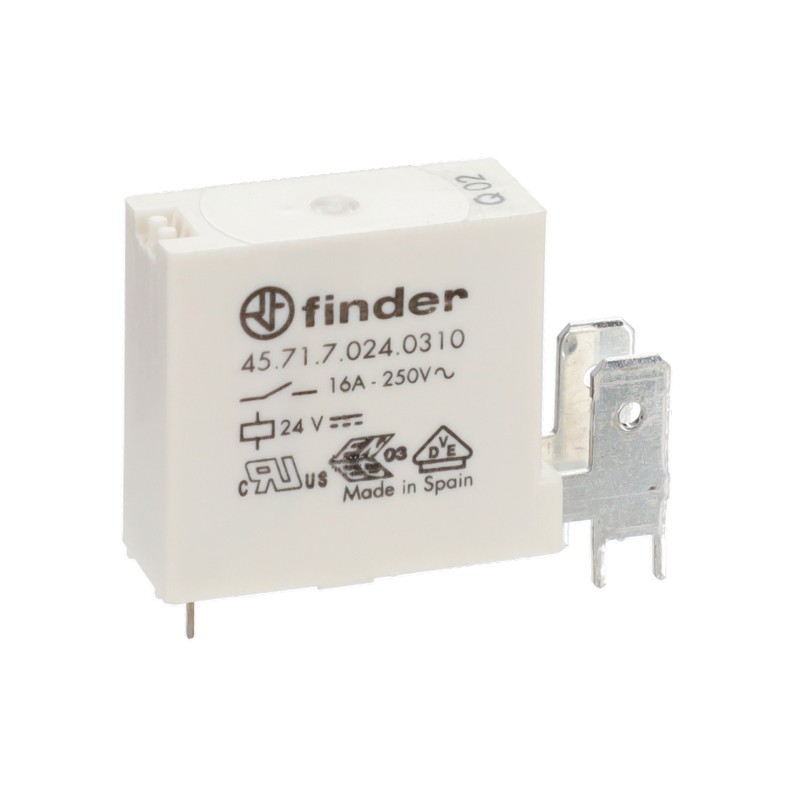

    1 pcs : 45.71.7.024.0310 - RELAY GEN PURPOSE SPST 16A 24V
    • 1 pcs : 45.71.7.024.0310 - RELAY GEN PURPOSE SPST 16A 24V

    1 pcs : 45.71.7.024.0310 - RELAY GEN PURPOSE SPST 16A 24V

    1AllpartsUK2066457170240310ND
    £15.97
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay SPST-NC (1 Form B) 24VDC Coil Through Hole
    Product Details
    Finder Relays, Inc.
    1AllpartsUK2066457170240310ND
    45.71.7.024.0310
    3 Items

    Data sheet

    Manufacturer
    Finder Relays, Inc.
    Operating temperature
    -40°C ~ 125°C
    Part status
    Active
    Contact material
    Silver Cadmium Oxide (AgCdO)
    Operate time
    10 ms
    Series
    45
    Mounting Type
    Through Hole
    Coil Resistance
    1.6 kOhms
    Relay Type
    General Purpose
    Switching Voltage
    400VAC - Max
    Features
    -
    Coil Voltage
    24VDC
    Termination Style
    PC Pin, Quick Connect - 0.250' (6.3mm)
    Grade
    -
    Packaging
    Box
    Qualification
    -
    Contact Form
    SPST-NC (1 Form B)
    Approval Agency
    cURus, EAC, ENEC, VDE
    Contact Rating (Current)
    16 A
    Load - Max Switching
    6400VA
    Coil Current
    15 mA
    Coil Type
    Non Latching
    Seal Rating
    Sealed - Flux Protection
    Coil Insulation
    -
    Must Operate Voltage
    16.8 VDC
    Must Release Voltage
    2.4 VDC
    Release Time
    2 ms
