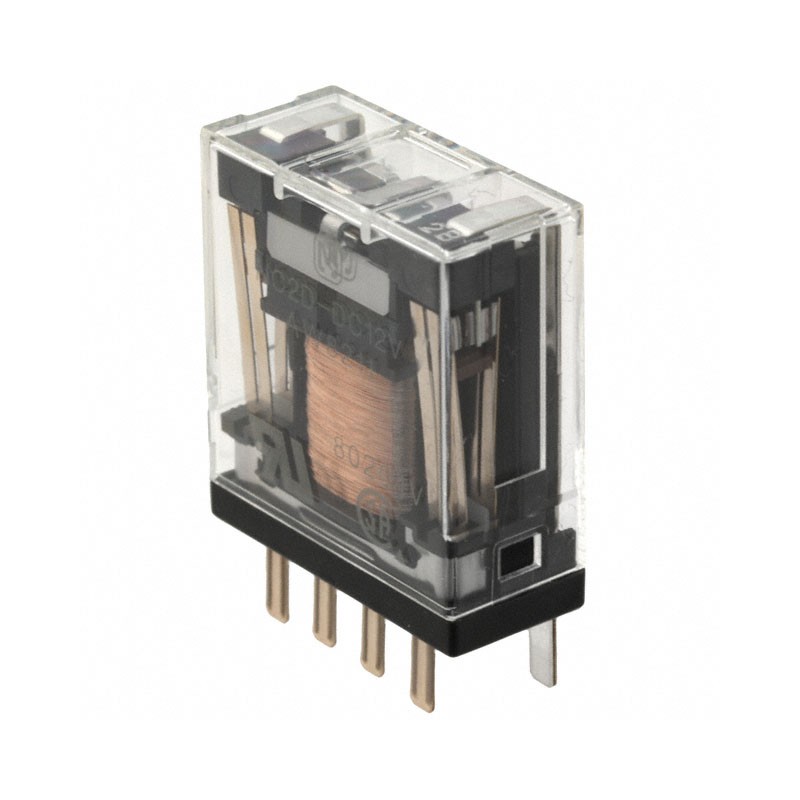

1 pcs : NC2EBD-DC12V - RELAY GEN PURPOSE DPDT 5A 12V
    • 1 pcs : NC2EBD-DC12V - RELAY GEN PURPOSE DPDT 5A 12V

    1 pcs : NC2EBD-DC12V - RELAY GEN PURPOSE DPDT 5A 12V

    1electronicpartsUK25540005ND
    £56.86
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
    Product Details
    1electronicpartsUK25540005ND
    NC2EBD-DC12V
    3 Items

    Data sheet

    Manufacturer
    Panasonic Electric Works
    Operating temperature
    -40°C ~ 70°C
    Part status
    Active
    Contact material
    Silver Nickel (AgNi), Gold (Au)
    Operate time
    20 ms
    Series
    NC
    Mounting Type
    Socketable
    Coil Resistance
    400 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    250VAC - Max
    Features
    -
    Coil Voltage
    12VDC
    Termination Style
    Plug In
    Grade
    -
    Packaging
    Tube
    Qualification
    -
    Contact Form
    DPDT (2 Form C)
    Approval Agency
    CSA, UR
    Contact Rating (Current)
    5 A
    Load - Max Switching
    1250VA
    Coil Current
    30 mA
    Coil Type
    Non Latching
    Seal Rating
    Sealed - Fully
    Coil Insulation
    -
    Must Operate Voltage
    9.6 VDC
    Must Release Voltage
    1.2 VDC
    Release Time
    10 ms
