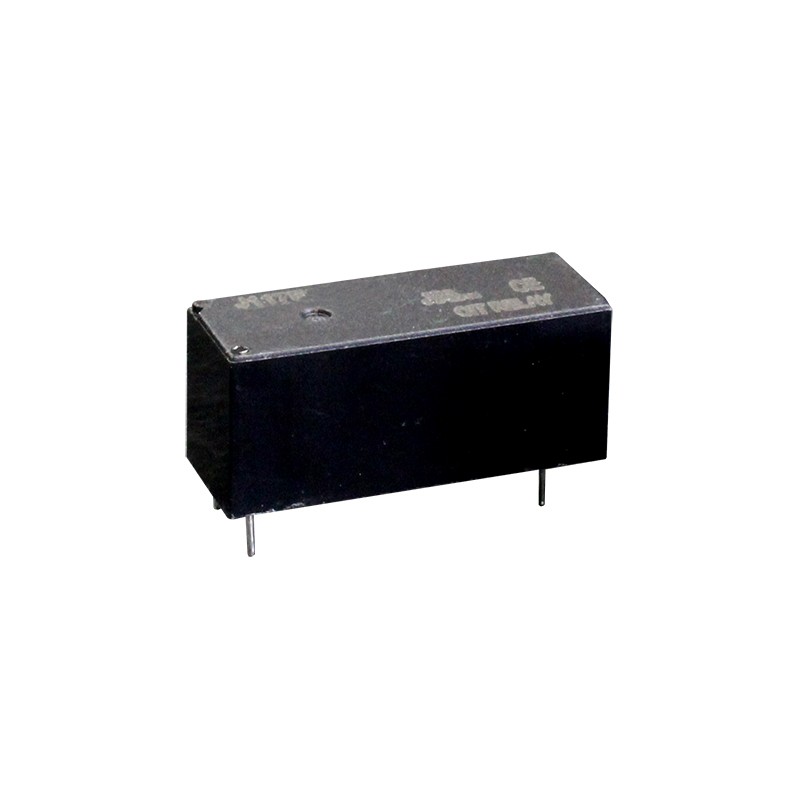

1 pcs : J117F1AS12VDC - RELAY GEN PURPOSE SPST 10A 12V
    • 1 pcs : J117F1AS12VDC - RELAY GEN PURPOSE SPST 10A 12V

    1 pcs : J117F1AS12VDC - RELAY GEN PURPOSE SPST 10A 12V

    1electronicpartsUK2449J117F1AS12VDCND
    £10.62
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
    Product Details
    1electronicpartsUK2449J117F1AS12VDCND
    J117F1AS12VDC
    3 Items

    Data sheet

    Manufacturer
    CIT Relay and Switch
    Operating temperature
    -55°C ~ 125°C
    Part status
    Active
    Contact material
    Silver Tin Oxide (AgSnO)
    Operate time
    10 ms
    Series
    J117F
    Mounting Type
    Through Hole
    Coil Resistance
    655 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    400VAC, 150VDC - Max
    Features
    -
    Coil Voltage
    12VDC
    Termination Style
    PC Pin
    Grade
    -
    Packaging
    Tube
    Qualification
    -
    Contact Form
    SPST-NO (1 Form A)
    Approval Agency
    cURus
    Contact Rating (Current)
    10 A
    Load - Max Switching
    4000VA, 1500W
    Coil Current
    18.3 mA
    Coil Type
    Non Latching
    Seal Rating
    Sealed - Fully
    Coil Insulation
    Class F
    Must Operate Voltage
    8.4 VDC
    Must Release Voltage
    1.2 VDC
    Release Time
    5 ms
