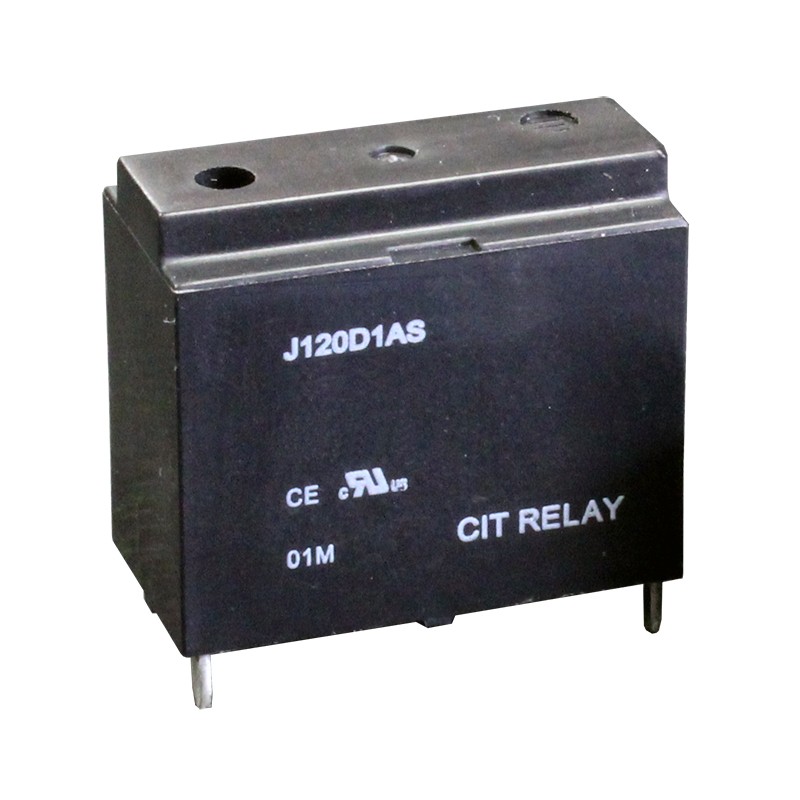

1 pcs : J120D1AS24VDCP - RELAY GEN PURPOSE SPST 20A 24V
    • 1 pcs : J120D1AS24VDCP - RELAY GEN PURPOSE SPST 20A 24V

    1 pcs : J120D1AS24VDCP - RELAY GEN PURPOSE SPST 20A 24V

    1electronicpartsUK2449J120D1AS24VDCPND
    £9.79
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
    Product Details
    1electronicpartsUK2449J120D1AS24VDCPND
    J120D1AS24VDCP
    3 Items

    Data sheet

    Manufacturer
    CIT Relay and Switch
    Operating temperature
    -30°C ~ 55°C
    Part status
    Active
    Contact material
    Silver Tin Oxide (AgSnO)
    Operate time
    20 ms
    Series
    J120D
    Mounting Type
    Through Hole
    Coil Resistance
    640 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    300VAC - Max
    Features
    -
    Coil Voltage
    24VDC
    Termination Style
    PC Pin
    Grade
    -
    Packaging
    Tray
    Qualification
    -
    Contact Form
    SPST-NO (1 Form A)
    Approval Agency
    cURus
    Contact Rating (Current)
    20 A
    Load - Max Switching
    6000VA
    Coil Current
    37.5 mA
    Coil Type
    Non Latching
    Seal Rating
    Sealed - Fully
    Coil Insulation
    -
    Must Operate Voltage
    18 VDC
    Must Release Voltage
    2.4 VDC
    Release Time
    10 ms
