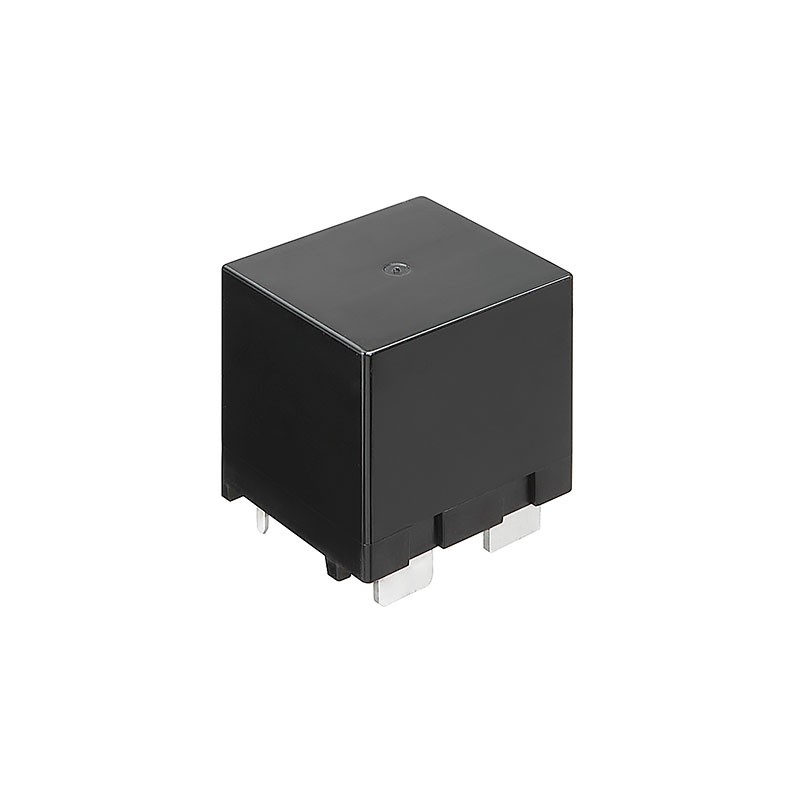

1 pcs : HE1AN-P-DC6V-H18 - HE PV RELAY, 35A TYPE, 6VDC COIL
    • 1 pcs : HE1AN-P-DC6V-H18 - HE PV RELAY, 35A TYPE, 6VDC COIL

    1 pcs : HE1AN-P-DC6V-H18 - HE PV RELAY, 35A TYPE, 6VDC COIL

    1electronicpartsUK255HE1ANPDC6VH18ND
    £41.05
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Through Hole
    Product Details
    1electronicpartsUK255HE1ANPDC6VH18ND
    HE1AN-P-DC6V-H18
    3 Items

    Data sheet

    Manufacturer
    Panasonic Electric Works
    Operating temperature
    -50°C ~ 55°C
    Part status
    Active
    Contact material
    Silver Tin Oxide (AgSnO)
    Operate time
    30 ms
    Series
    HE-PV
    Mounting Type
    Through Hole
    Coil Resistance
    18.8 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    490VAC, 48VDC - Max
    Features
    -
    Coil Voltage
    6VDC
    Termination Style
    PC Pin
    Grade
    -
    Packaging
    Box
    Qualification
    -
    Contact Form
    SPST-NO (1 Form A)
    Approval Agency
    CSA, cURus, VDE
    Contact Rating (Current)
    35 A
    Load - Max Switching
    17150VA, 1680W
    Coil Current
    320 mA
    Coil Type
    Non Latching
    Seal Rating
    Sealed - Flux Protection
    Coil Insulation
    -
    Must Operate Voltage
    4.2 VDC
    Must Release Voltage
    0.6 VDC
    Release Time
    10 ms
