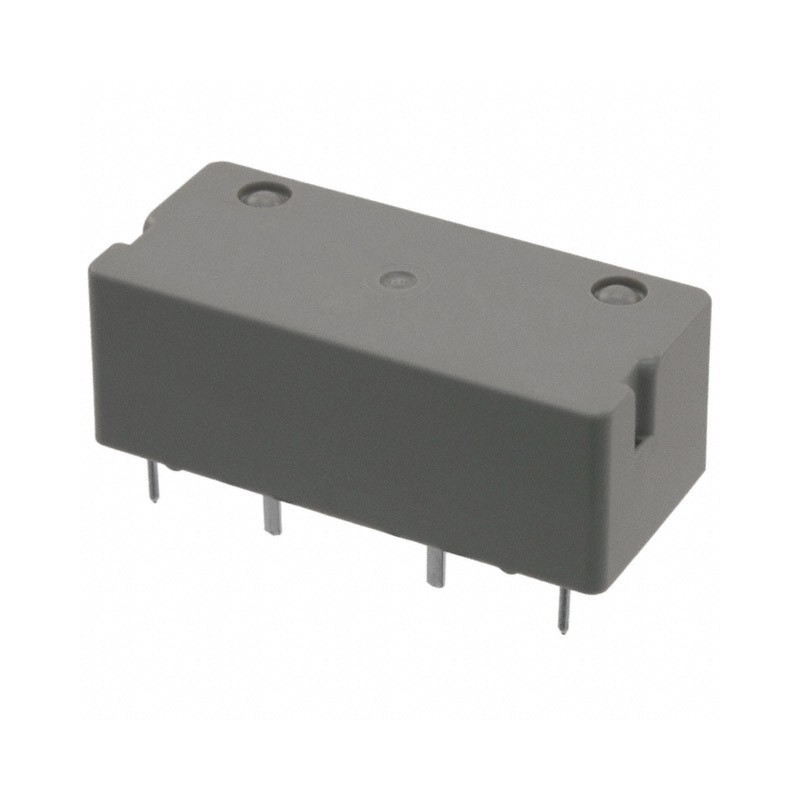

1 pcs : ST1-L2-DC12V-F - RELAY GEN PURPOSE DPST 8A 12V
    • 1 pcs : ST1-L2-DC12V-F - RELAY GEN PURPOSE DPST 8A 12V

    1 pcs : ST1-L2-DC12V-F - RELAY GEN PURPOSE DPST 8A 12V

    1electronicpartsUK2552939ND
    £51.65
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 12VDC Coil Through Hole
    Product Details
    1electronicpartsUK2552939ND
    ST1-L2-DC12V-F
    3 Items

    Data sheet

    Manufacturer
    Panasonic Electric Works
    Operating temperature
    -40°C ~ 60°C
    Part status
    Active
    Contact material
    Silver Tin Oxide (AgSnO)
    Operate time
    15 ms
    Series
    ST
    Mounting Type
    Through Hole
    Coil Resistance
    640 Ohms
    Relay Type
    General Purpose
    Switching Voltage
    380VAC, 250VDC - Max
    Features
    -
    Coil Voltage
    12VDC
    Termination Style
    PC Pin
    Grade
    -
    Packaging
    Tube
    Qualification
    -
    Contact Form
    DPST-NO/NC (1 Form A, 1 Form B)
    Approval Agency
    CSA, UR, VDE
    Contact Rating (Current)
    8 A
    Load - Max Switching
    3040VA, 2000W
    Coil Current
    18.8 mA
    Coil Type
    Latching, Dual Coil
    Seal Rating
    Sealed - Fully
    Coil Insulation
    -
    Must Operate Voltage
    9.6 VDC
    Must Release Voltage
    -
    Release Time
    15 ms
