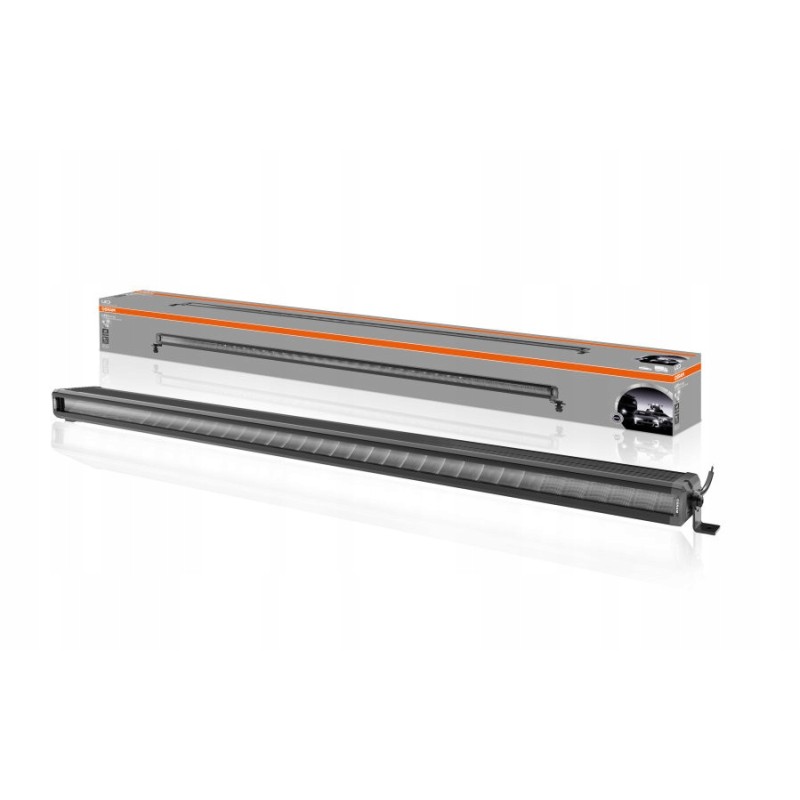

Osram ledriving lightbar vx1000 cb high beam

DRIVING LIGHTS OSRAM LEDRIVING LIGHTBAR VX1000-CB SMLightbar VX1000-CB SMBring light into your life with OSRAM LEDriving driving and work lamps

Significant foresight on dark country roads, forest paths, off the beaten track, off-road and on-road - this can be achieved with OSRAM LEDriving Lightbar VX1000-CB SM. With 36 powerful, high-performance, long-life OSRAM LEDs, the VX1000-CB SM has a range of up to 525 meters, giving the rider impressive foresight on and off-road. Even in low light and limited visibility due to external environmental influences, the OSRAM LEDriving Lightbar VX1000-CB SM with a temperature of up to 6000 Kelvin can provide daylight-like conditions. The power package with a brightness of up to 6,000 lumens is characterized by the highest optical efficiency and uniform light distribution. This results in better visibility for you and better visibility for your vehicle to other road users.

Whether on or off-road - the OSRAM LEDriving Lightbar VX1000-CB SM impresses with high performance and a long service life of up to 5,000 hours. Versatile in use, it withstands numerous environmental influences, and thanks to high-quality materials, such as the aluminum housing and stable polycarbonate lens, it is exceptionally light and at the same time durable and resistant. OSRAM LEDriving Lightbar VX1000-CB SM has been tested and approved to IP protection class IP67 in our DIN-certified environmental simulation laboratory for extreme external influences such as water, dust, impacts, heat, cold and constant vibration. The integrated controller and temperature management system regulates the temperature of the LED Lightbar and can thus prevent damage caused by overheating. Polarity protection blocks incorrect polarity of the supply voltage and can thus prevent possible damage by automatically turning off the LEDs. On or off-road, the OSRAM LEDriving Lightbar VX1000-CB SM is an effective and efficient addition to your vehicle. No registration or entry in the vehicle documents is required for these ECE-certified LED driving lights

ECE reference number: 37.5 + 37.5

The OSRAM LEDriving VX1000-CB SM light bar can be installed in passenger cars, trucks, agricultural machinery , agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads.

OSRAM LEDriving The VX1000-CB SM light bar is versatile and flexible in use.

Technical dataCountry - specific categorizationProduct designation

LEDDL120-CB SM

Product informationApplication (product specifications)

Additional driving lights

Electrical data Nominal voltage

12/24 V

Rated power

108.00 W

Test (measurement) voltage

13.5 V

Photometric data Luminous flux

6000 lm

Luminous flux of 1 lx

525 m

Color temperature

6000 K

LED module data Number of LEDs in the module

36

Dimensions and weight Width

67.0 mm

Height

35 mm

Length

1031 mm

Product weight

2840.00 g

Durability Durability Tc

5000 h

Warranty

2 years

Additional product dataLamp plug

Open wire

Product note

Beam Pattern: Combo

CapabilitiesTechnology

LED

Certificates and StandardsResearch station signs

E57 approval

Standards

2x ECE R112/R10

Protection type

IP67

Logistics dataCustoms tariff code

851220009000
