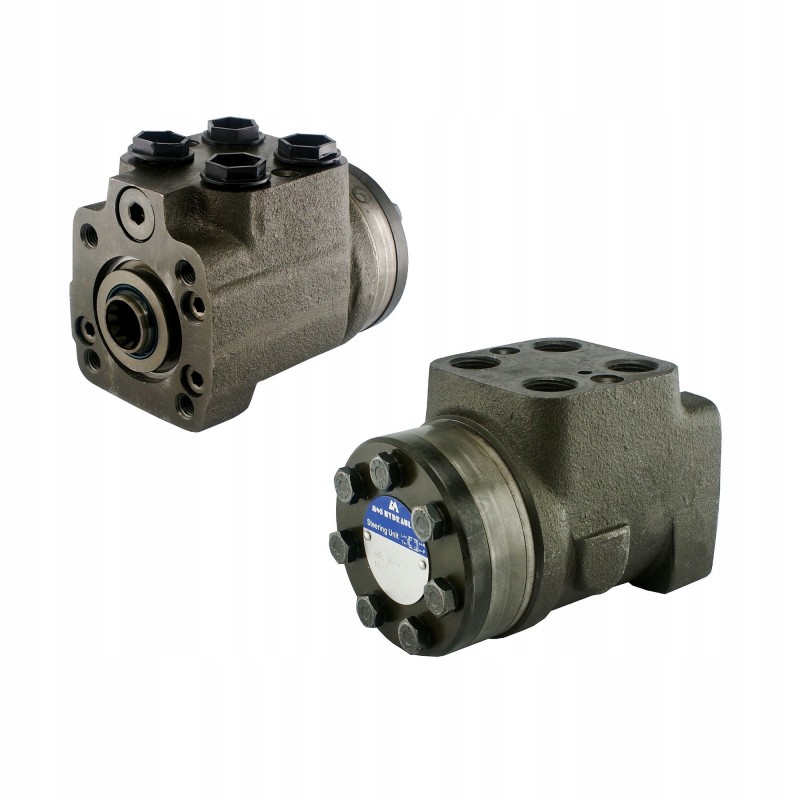

Orbitrol ospc 80 on ms hkus80 4

ORBITROL OSPC 80 ONProduction:

Original product of the M+S Hydraulic brand, symbol: HKUS80/4

Comparison numbers of other manufacturers:

OSPC-80-ON, OSPC80ON, 150N2150, HKUS80/4

Application:

Widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 80 ON intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines, etc.

DEAR CUSTOMER, READ THIS BEFORE BUY ORBITROL: Orbitrol is a very precise device that is important for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision makes it impossible to drive and work properly with the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 80 with the ON (OPEN NORMALLY) system, while the steering wheel is standing, the oil circulates in the system all the time and passes freely through orbitrol, return line to the tank, the pump then works, but is unloaded.

Connections: P, T, L, R internal threads [BSP]: 1/2'

Threaded holes V: 2x M10x1 - depth: 16 mm

Threaded holes B: 4x M10 - depth: 18mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 79.2 cm3/rev

Recommended oil flow in the system: 6-10L/min.

Material: cast iron

Drawing with full dimensions ( photos):

Advantages of orbitrols produced by M+S Hydraulic:

A special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in heavily loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation.

Produced in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, function this is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC ON orbitrol (photo):
