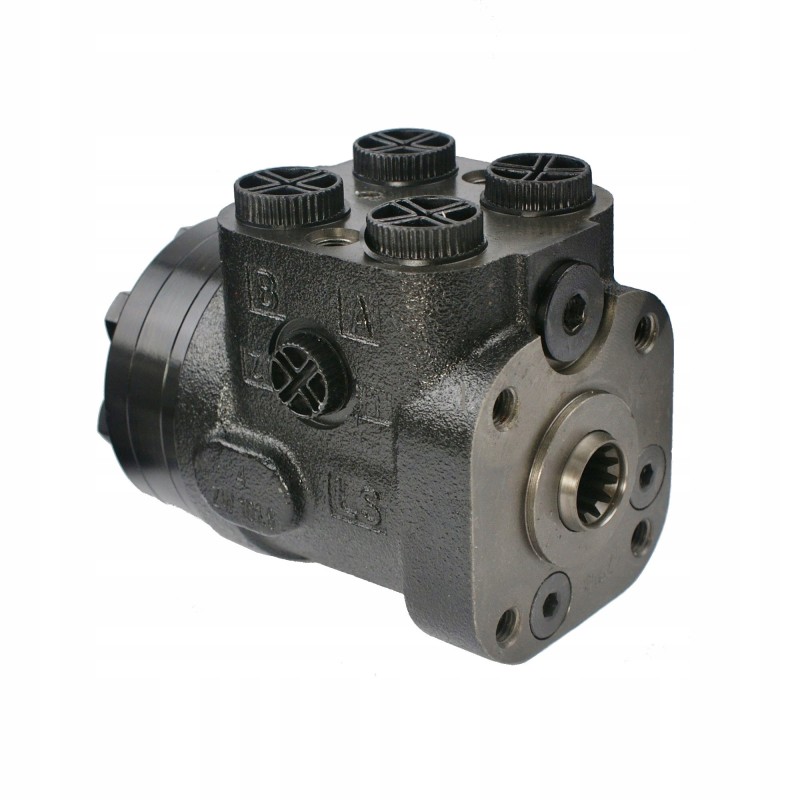

Orbitrol ospc 400 ls reinforced hydrolider

ORBITROL OSPC 400 LSProduction:

Original product of the Hydrolider brand, symbol: 1.06.02.400

Comparison numbers of other manufacturers:

OSPC-400-LS, OSPC400LS, 150-1240

Application:

Widely used in steering systems in industrial machines and used vehicles in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 400 LS intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines in which the pump is equipped with an LS sensor.

DEAR CUSTOMER READ THIS BEFORE YOU BUY ORBITROL: Orbitrol is a very precise device that is important for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision prevents proper driving and operation of the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 400 with the LS (LOAD SENSING) system, when the steering wheel is standing, the oil flow through the orbitrol is closed, the orbitrol holds then the pressure in the system. The LS system sends a signal to the pump every time the steering wheel is moved.

Connections: P, T, A, B internal threads [BSP]: 1/2'

LS connection: internal thread [BSP] 1/4'

Column mounting handlebars: 4x M10 screw - 16mm

Valve setting: overflow 160 bar, shock 240 bar

Geometric volume: 400 cm3/rev

Recommended oil flow in the system: from 35 to 45 L/min.

Material: cast iron

Drawing with full dimensions (photo. ):

Advantages of orbitrols manufactured by Hydrolider:

A special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in very loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines , we also provide full technical support in the selection of the appropriate orbitrol and installation.

Produced in Europe, from a reliable source, proven goods from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. towing.

Hydraulic diagram of the OSPC LS orbitrol (photo):
