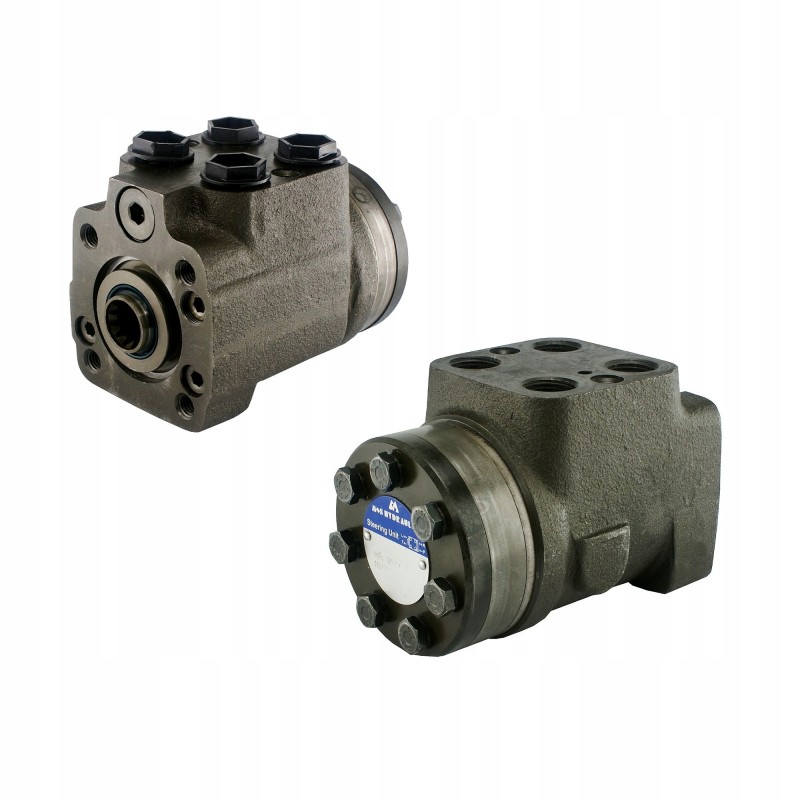

Orbitrol ospc 250 on ms hkus250 4

ORBITROL OSPC 250 ONProduction:

Original product of the M+S Hydraulic brand, symbol: HKUS250/4

Comparison numbers of other manufacturers:

OSPC-250-ON, OSPC250ON, 150N2155, HKUS250/4

Application:

Widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 250 ON intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines, etc.

Application in tractors:

URSUS: C-385, C-385A, 902, 912, 914, 1202, 1204, 1212, 1214

ZETOR: 8011, 8111, 8045, 8145

CASE IH: JX 55, 60, 65, 70, 75, 80, 85, 90, 95

NEW HOLLAND TD: 5040, 5050, 60D, 70D, 80D, 90D, 95D

DEAR CUSTOMER, READ THIS BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise and important device for traffic safety, unfortunately there are many cheap ones on the market a product from China that looks the same at first glance, but poor workmanship prevents proper driving and operation of the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 250 with the ON (OPEN NORMALLY) system, while the steering wheel is standing, the oil circulates in the system all the time and passes freely through orbitrol, return line to the tank, the pump then works but is unloaded.

Connections: P, T, L, R internal threads [BSP]: 1/2'

Threaded holes V: 2x M10x1 - depth: 16 mm

Threaded holes B : 4x M10 - depth: 18mm

Valve setting: overflow 160 bar, shock 240 bar

Geometric volume: 248 cm3/rev

Recommended oil flow in the system: 20-30 L/min

Material: cast iron

Drawing with full dimensions (photo) :

Advantages of orbitrols produced by M+S Hydraulic:

A special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in heavily loaded vehicles.

Each orbitrol is sent together with connection instructions hydraulic lines, we also provide full technical support in the selection of the appropriate orbitrol and installation.

Produced in Europe, from a reliable source, a proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. . while towing.

Hydraulic diagram of the OSPC ON orbitrol (photo):
