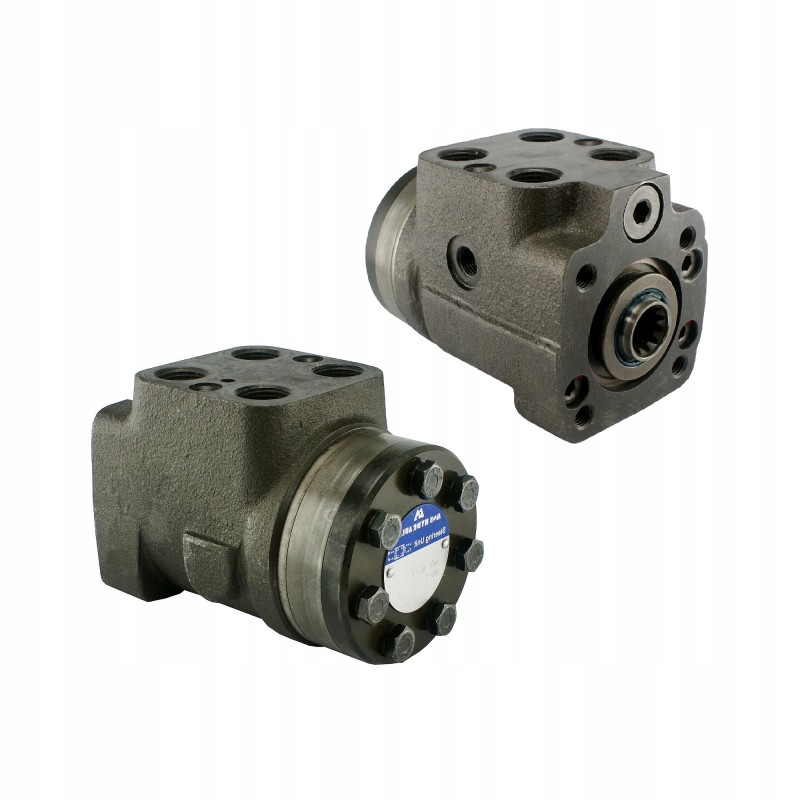

Orbitrol ospc 200 ls ms hkus200 5t

ORBITROL OSPC 200 LSProduction:

Original product of the M+S Hydraulic brand, symbol: HKUS200/5T

Comparison numbers of other manufacturers:

OSPC-200-LS, OSPC200LS, 150-1234, HKUS200/5T

Application:

Widely used in systems steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 200 LS intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines in which the pump is equipped in the LS sensor.

DEAR CUSTOMER, READ THIS BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise and important device for traffic safety, unfortunately there are many cheap products from China on the market that look the same at first glance, but poor precision makes it impossible to perform correctly driving and working with a tractor. We do not recommend the cheapest orbitrols from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 200 with the LS (LOAD SENSING) system, when the steering wheel is standing, the oil flow through the orbitrol is closed, the orbitrol holds then the pressure in the system. The LS system gives a signal to the pump every time the steering wheel is moved.

Connections: P, T, L, R internal threads [BSP]: 1/2'

LS connection: internal thread [BSP] 1/4'

Threaded holes V: 2x M10x1 - depth: 16mm

Threaded holes B: 4x M10 - depth: 18mm

Geometric volume: 198cm3/rev

Recommended oil flow in the system: 16-24L/min.

Material: cast iron

Drawing with full dimensions ( photos):

Advantages of orbitrols produced by M+S Hydraulic:

A special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in heavily loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation.

Produced in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, function this is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC LS orbitrol (photo):
