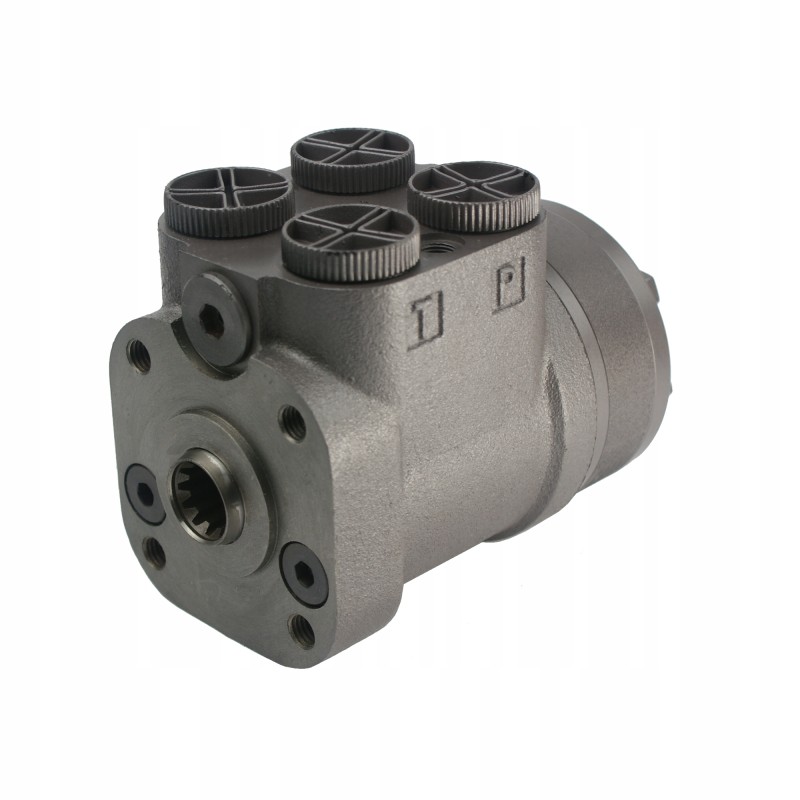

Orbitrol ospc 125 or reinforced hydrolider

ORBITROL OSPC 125 ORProduction:

Original product of the Hydrolider brand, symbol: 1.06.60.125

Comparison numbers of other manufacturers:

OSPC-125-OR, OSPC125OR

Application:

Widely used in steering systems in industrial machines and vehicles used in transport and agriculture , horticulture, forestry, construction and industry.

Orbitrol OSPC 125 OR intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines, etc.

Used wherever terrain unevenness should be felt on the steering wheel, such the requirement is, for example, in orchard tractors that drive between delicate windrows. The operator, feeling on the steering wheel that he is entering a pile, has time to reduce the driving path, preventing damage to the crops.

DEAR CUSTOMER, READ THIS BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise and important device for traffic safety, unfortunately there are many cheap products on the market with chin, which looks the same at first glance, but poor workmanship prevents proper driving and operation of the tractor. We do not recommend the cheapest Orbitrols from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 125 with the OR (OPEN CENTER REACTION) system, while the steering wheel is standing, the oil circulates in the system all the time and passes freely through orbitrol, the return line to the tank, the pump then works, but is relieved. The pressure on the wheels caused by the unevenness of the terrain is transferred to the steering wheel.

Connections: P, T, A, B internal threads [BSP]: 1/2'

Steering column mounting: 4x M10 screw - 16 mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 125cm3/rev.

Recommended oil flow in the system: from 10 to 14L/min.

Material: cast iron

Drawing with full dimensions (photo):

Advantages of orbitrols manufactured by Hydrolider:

Special, reinforced and more precisely made the design ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in very loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation.

Manufactured in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC OR orbitrol (photo. ):
