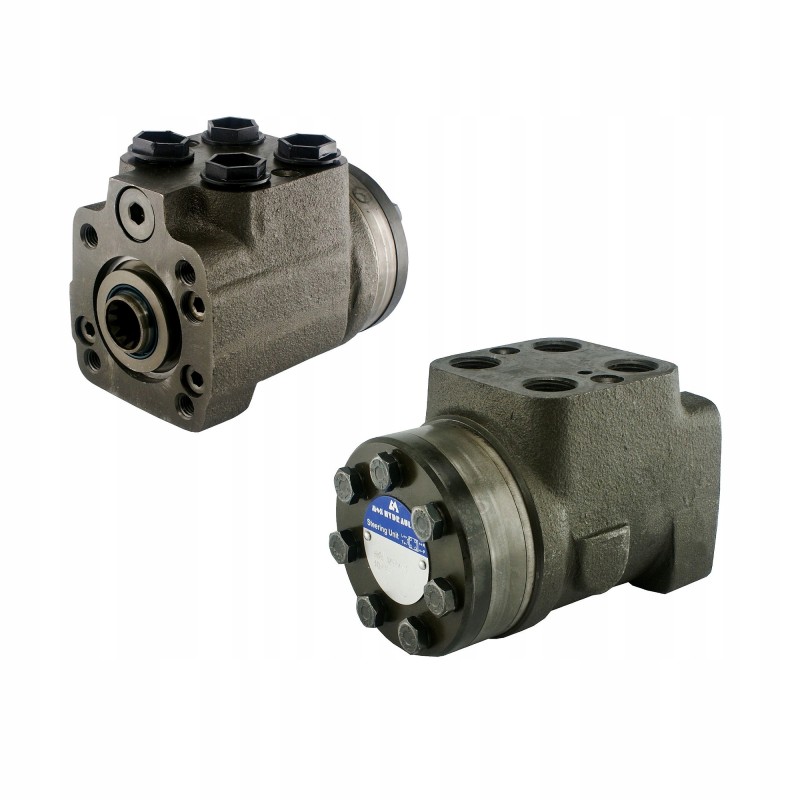

Orbitrol ospc 100 on ms hkus100 4

ORBITROL OSPC 100 ONProduction:

Original product of the M+S Hydraulic brand, symbol: HKUS100/4

Comparison numbers of other manufacturers:

OSPC-100-ON, OSPC100ON, 150N2151, 5050871380, 7019756M91, 1.06.03.100

Application:

Widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 100 ON intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines, etc.

Application in tractors:

URSUS: C-330, C-360, C-360-3P, 3512, 3502

MTZ: 80, 82, T-25

ZETOR: 5211, 7211, 7045, 7245

CASE IH AVJ: 55, 60, 70, JX 55, 60, 65, 70, 75, 80, 85, 90, 95, VJ 60, 70, 80

FIAT: 55-46, 60-46, 65-46, 55-56, 60- 56, 65-56, 70-56, 55-66, 60-66, 65-66, 70-66 80-66, 55-88, 60-88, 65-88, 70-88, 80-88, 55 -90, 60-90,65-90, 70-90, 80-90, 90-90, 100-90, 110-90, 60-93, 65-93, 60-94, 65-94, F 100, 110, 130

MASSEY FERGUSON: 230, 240, 253, 255, 261, 263, 340, 342, 350, 352, 355, 360, 362, 365, 372, 375, 382, 390, 396, 398, 399 , 265 , 275, 3275E, 285, 290, 290E, 298, 375E, 390E, 675, 690, 698, 698T, 699,

NEW HOLLAND TD: 5040, 5050, 55D, 60D, 65D, 70D, 75D, 80 D, 85D, 90D, 95D

RENAULT: 58-32ME, 58-32MA, 58-32MS, 58-32MX, 75-32TX, 75-34TX, 85-32TX, 85-34TX, 90-32TX, 90-34TX, 650MI, 750MI, 754MI, 850MI, 854MI, 900MI, 904MI, 950MI, 954MI, 1032-54TS, 103-54TX, 103-54TE, 103-54TA, 106-54TS, 106-54TX, 106-54TE, 106-54TA

RENAULT CERES: 65 , 70, 70X, 75, 75X, 85, 85X, 95, 95X, 310, 320, 320X, 330, 330X, 340, 340X, 325X, 335X, 345X, 355X

RENAULT CERGOS: 330, 340, 350, 345, 355,

Claas Celtis: 426ra, 426RC, 426rx, 436RC, 436RX, 446ra, 446RC, 446RX, 456ra, 456RC, 456RX

Dear customer read it before you buy orbitr. there are many cheap goods from China on the market that look the same at first glance, but poor workmanship prevents proper driving and operation of the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 100 with the ON (OPEN NORMALLY) system, while the steering wheel is standing, the oil circulates in the system all the time and passes freely through orbitrol, return line to the tank, the pump then works, but is unloaded.

Connections: P, T, L, R internal threads [BSP]: 1/2'

Threaded holes V: 2x M10x1 - depth: 16 mm

Threaded holes B: 4x M10 - depth: 18mm

Valve setting: overflow 160 bar, shock 240 bar

Geometric volume: 100 cm3/rev

Recommended oil flow in the system: from 8 to 12 L/min

Material: cast iron

Drawing with full dimensions (photo .):

Advantages of orbitrols produced by M+S Hydraulic:

A special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in very loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation.

Produced in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC ON orbitrol (photo):
