Orbitrol ospb 125 cn ms hku125 7

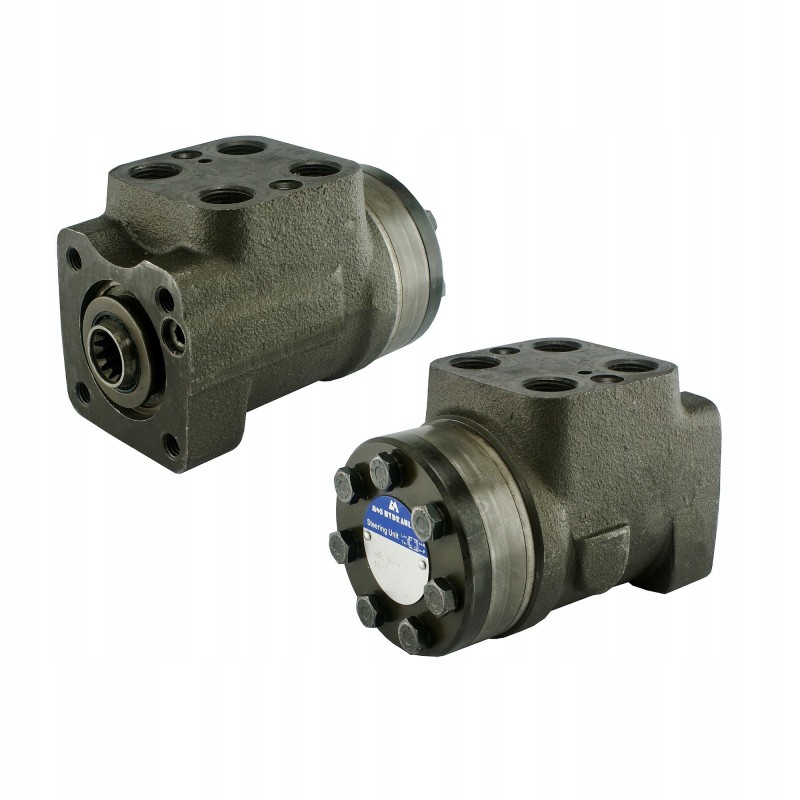

ORBITROL OSPB 125 CNProduction:

Original product of the M+S Hydraulic brand, symbol: HKU125/7

Comparison numbers of other manufacturers:

OSPB-125-CN, OSPB125CN, 150-0129, HKU125/7

Application:

Widely used in systems steering in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPB 125 CN intended for hydraulic steering system control in agricultural tractors, forklifts, excavators, combines and construction machines, etc.

DEAR CUSTOMER, READ BEFORE YOU BUY ORBITROL: Orbitrol is a very precise device that is important for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision makes it impossible to drive and work properly with the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 125 with the CN (CLOSED NORMALLY) system, when the steering wheel is standing, the oil flow through the orbitrol is blocked, the orbitrol holds the pressure in the system

Connections: P, T, L, R internal threads [BSP]: 1/2'

Threaded holes V: 2x M10x1 - depth: 16 mm

Threaded holes B: 4x M10 - depth: 18 mm

Geometric volume: 123 cm3/ rpm

Recommended oil flow in the system: 10-14L/min.

Material: cast iron

Drawing with full dimensions (photo):

Advantages of orbitrols produced by M+S Hydraulic:

A special, reinforced and more precisely made structure ensures perfect operation no leaks, no jerking of the steering wheel and, most importantly, very light and smooth steering even in heavily loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation.

Produced in Europe, originating from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPB CN orbitrol (photo):
