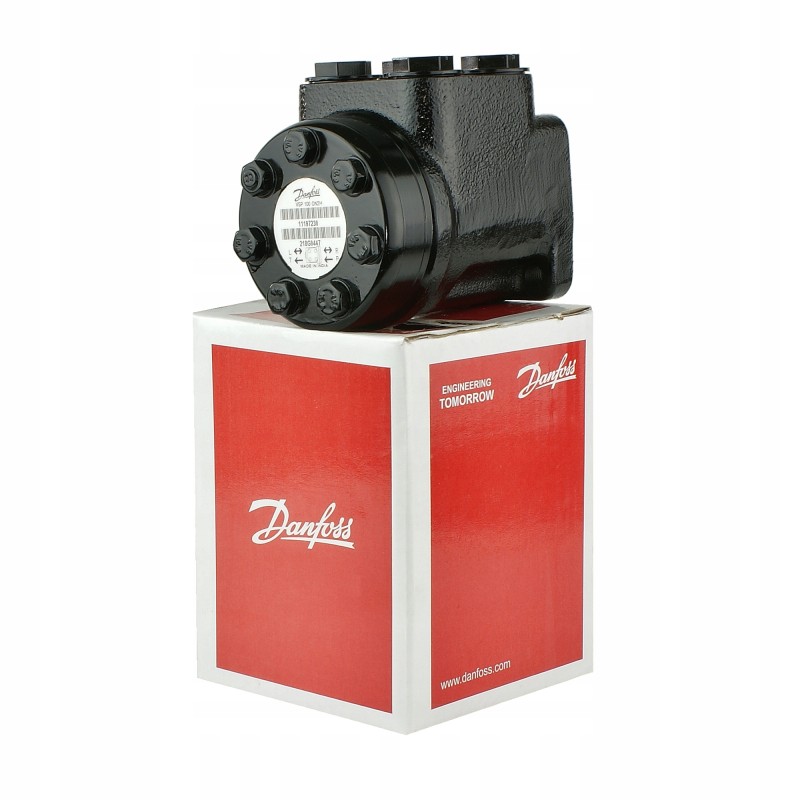

Orbitrol turn 100 on 150n2151 danfoss

ORBITROL OSPC 100 ON DANFOSSProduction:

Produced by the world leader in orbitrol manufacturers, Danfoss, in their own factory in India.

Manufacturer's symbols: 150N2151, VSP 100 ON2H, 1.06.00.100.2

Comparison numbers of other manufacturers:

OSPC-100-ON, OSPC100ON, 5050871380, 7019756M91

Application:

Widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 100 ON intended for hydraulic control of the steering system in agricultural tractors and trolleys forklifts, excavators, combines and construction machines, etc.

Application in tractors:

URSUS: C-330, C-360, C-360-3P, 3512, 3502

MTZ: 80, 82, T-25

ZERO: 5211, 7211 , 7045, 7245

CASE IH AVJ: 55, 60, 70, JX 55, 60, 65, 70, 75, 80, 85, 90, 95, VJ 60, 70, 80

FIAT: 55-46, 60- 46, 65-46, 55-56, 60-56, 65-56, 70-56, 55-66, 60-66, 65-66, 70-66 80-66, 55-88, 60-88, 65 -88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 90-90, 100-90, 110-90, 60-93, 65-93 , 60-94, 65-94, F 100, 110, 130

MASSEY FERGUSON: 230, 240, 253, 255, 261, 263, 340, 342, 350, 352, 355, 360, 362, 365, 372, 375 , 382, 390,396, 398, 399, 265, 275, 3275E, 285, 290, 290E, 298, 375E, 390E, 675, 690, 698, 698T, 699,

NEW HOLLAND TD: 5040, 5050 , 55D, 60D, 65D, 70D, 75D, 80D, 85D, 90D, 95D

RENAULT: 58-32ME, 58-32MA, 58-32MS, 58-32MX, 75-32TX, 75-34TX, 85-32TX, 85-34TX, 90- 32TX, 90-34TX, 650MI, 750MI, 754MI, 850MI, 854MI, 900MI, 904MI, 950MI, 954MI, 1032-54TS, 103-54TX, 103-54TE, 103-54TA, 106-54TS, 106-54TX, 106- 54TE, 106-54TA

RENAULT CERES: 65, 70, 70X, 75, 75X, 85, 85X, 95, 95X, 310, 320, 320X, 330, 330X, 340, 340X, 325X, 335X, 345X, 355X

RENAULT CERGOS: 330, 340, 350, 345, 355,

CLAAS CELTIS: 426RA, 426RC, 426RX, 436RC, 436RX, 446RA, 446RC, 446RX, 456RA, 456RC, 456RX

DEAR CUSTOMER, READ THIS BEFORE BUYING SZ ORBITROL: Orbitrol is very good a precise and important device for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision makes it impossible to drive and work properly with the tractor. We do not recommend the cheapest orbitrols, from unreliable sources, from sellers who have no experience in selling this type of devices.

Orbitrol technical data:

Orbitrol 100 with the ON (OPEN NORMALLY) system, while the steering wheel is standing, the oil circulates in the system all the time and flows freely through orbitrol, the return line to the tank, the pump then works, but is unloaded.

Connections: P, T, A, B internal threads [BSP]: 1/2'

Steering column mounting: 4x M10 screw - 16 mm

Valve setting : overflow 160bar, shock 240bar

Geometric volume: 100cm3/rev

Recommended oil flow in the system: from 8 to 12L/min.

Material: cast iron

Drawing with full dimensions (photo):

Advantages of Danfoss orbitrols:

Orbitrol very high quality for very demanding customers

special, reinforced and even more precisely made. The design ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in very loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines , we also provide full technical support in selecting the appropriate orbitrol and during installation.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC ON orbitrol (photo):
