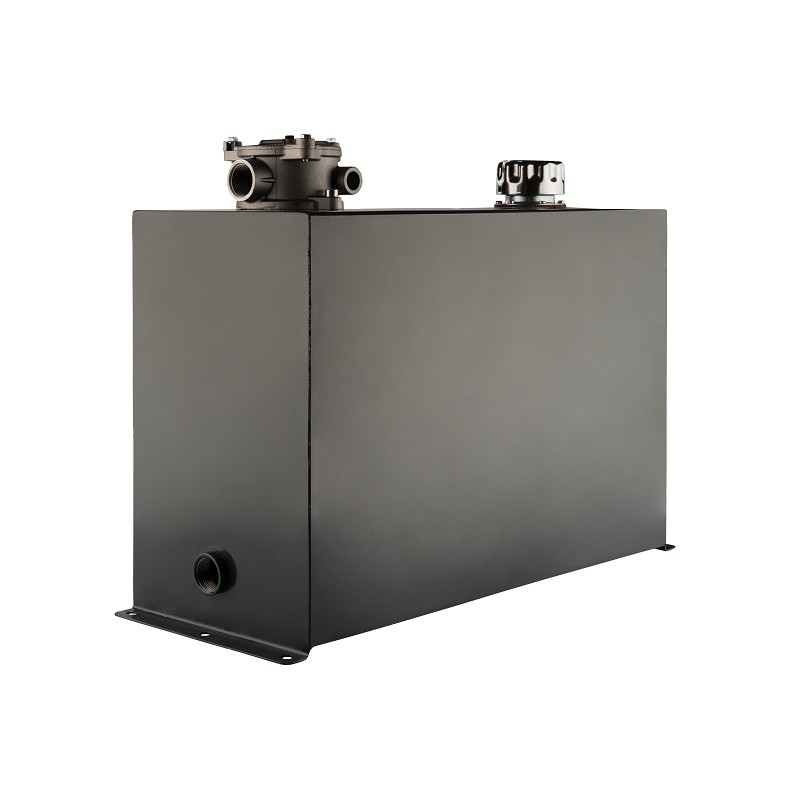

Oil tank 45l set 1 41 01 045 hydrolider

UNIVERSAL METAL OIL TANK WITH ADDITIONAL ACCESSORIES Production:

Original product of the Hydrolider brand, symbol: 1.41.01.045

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Universal oil tank mounted to the ground, intended for for all types of machines and devices with a hydraulic system that requires a specific amount of oil.

The tanks in the hydraulic system also act as a cooler, dissipating heat. An appropriately sized tank enables long and continuous operation of the system without the risk of oil heating and work stoppages.

Technical data:

Produced on a professional production line, checked for leaks. Very nice and aesthetic appearance, powder-coated external walls

Capacity: 45 liters

Holes:

Return in the filter - internal threaded BSP 1'

Suction left and right to choose from - internal thread BSP 1'

Mounting - smooth 6x fi 10.5 mm

Additional accessories:

Return filter from the RFM series, mounted directly to the tank. Possibility to connect a pressure gauge. It has replaceable cellulose inserts and a bypass valve set to 1.5bar. Max flow 70L/min, filtration 25µ. Connection port, BSP 1' internal thread

Filling plug with filter mesh and air vent. Mounted directly to the hole in the tank. Mounting: 5x M5 - FI 73mm. Flow: 550 L/min - oil with a density of 30 CST (equivalent to HL 30) Filtration: 10µ, opening in the tank: 51 mm, strainer dimensions: 50 × 80 Sealing: plug

Sink plug, has a sealing O-ring and a strong magnet catching all metal filings from the hydraulic system. BSP 3/4' thread, smooth round head, screwed on with an 'AMBUS' key. Oil level indicator with a thermometer shows the oil level and temperature. Mounting to the tank with two screws with M10x1.5 thread (included). Spacing of mounting screws 76mm.
