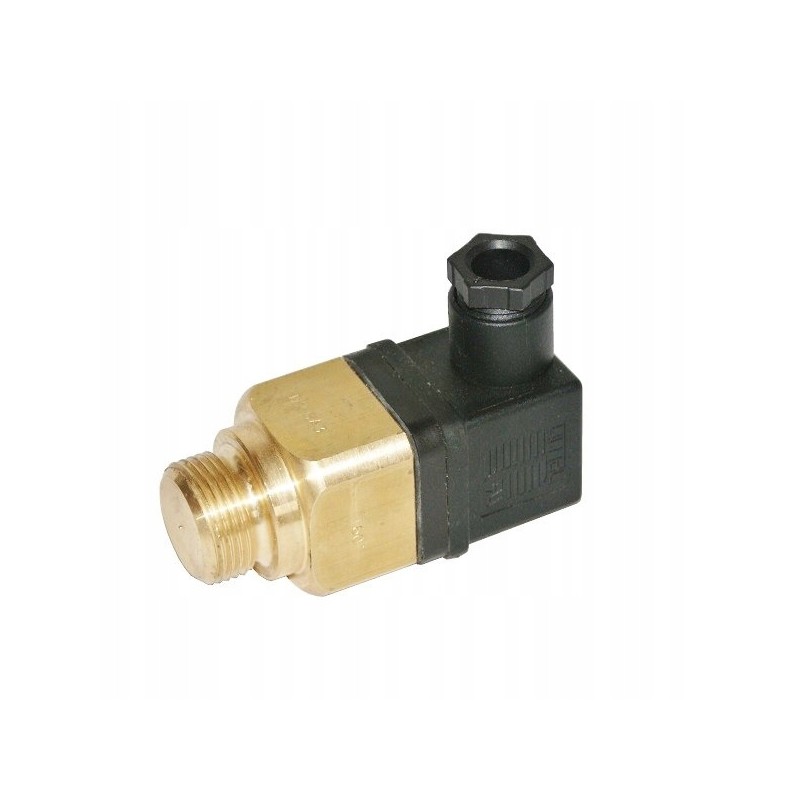

Oil cooler thermostat 12v, 50 degree sensor

ST OIL COOLER THERMOSTAT Production:

Original product of the Hydrolider brand, symbol: 1.50.10.000

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The sensor turns on the radiator fan after exceeding a certain oil temperature in the hydraulic system.

Integration:

Fits all ST series oil coolers and their equivalents, including: ST50, ST60, ST100, ST150, ST180, ST210, ST250, ST260, ST2100, ST2150, ST2180, ST2210

Among others suitable for such coolers in the photo:

Technical data:

Temperature sensor setting: 50°C

Tolerance: ± 5 °C

Maximum operating temperature: 130 °C

Maximum current voltage: 230V

Maximum current: 10A

Thread: M22x1 .5

Helpful data:

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6
