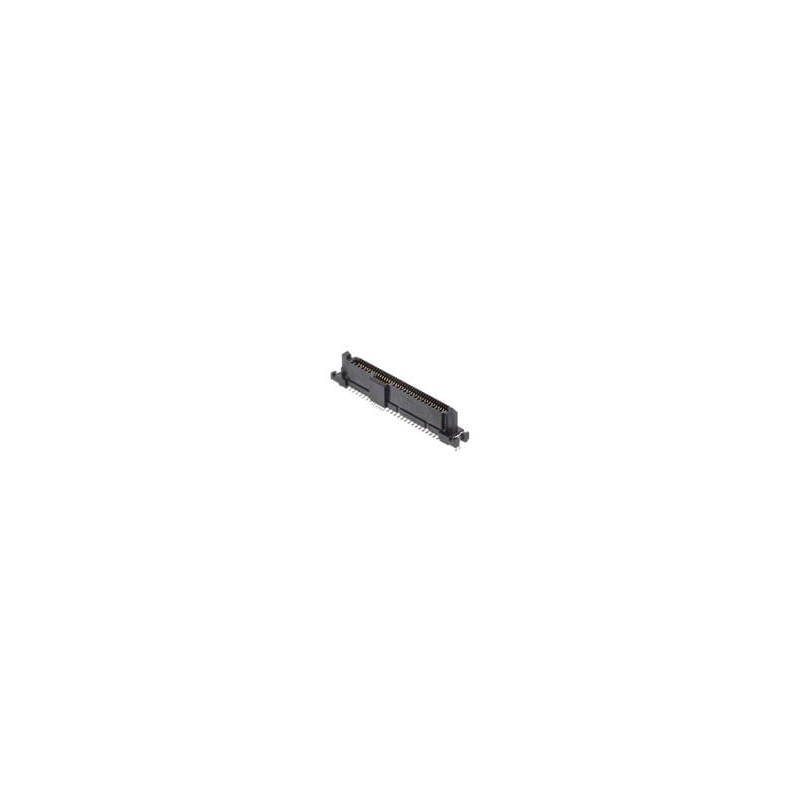

    10 pcs : 78777-1002 - I/O Connectors SAS/PCIE Rcpt Vert SMT 0.76AuLF 68Ckt
    • 10 pcs : 78777-1002 - I/O Connectors SAS/PCIE Rcpt Vert SMT 0.76AuLF 68Ckt

    10 pcs : 78777-1002 - I/O Connectors SAS/PCIE Rcpt Vert SMT 0.76AuLF 68Ckt

    10(Allparts)538787771002
    MOLEX
    10 pcs : 78777-1002 - I/O Connectors SAS/PCIE Rcpt Vert SMT 0.76AuLF 68Ckt
    £52.00
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    SAS-3 & U.2 Backplane Connectors Molex SAS-3 and U.2 (SFF-8639) Backplane Connectors support 12Gbps data rates and combine the latest enhancements of SAS-3 and U.2 technologies to suit Solid State Device (SDD) applications. These high-speed connectors include right-angle SAS-3 and U.2 receptacles featuring a common PCB footprint for cost-effective future connector upgrades. These Molex backplane connectors also offer a wide range of mating height and PCB mounting and retention configurations.
    Product Details
    MOLEX
    10(Allparts)538787771002
    78777-1002
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Current rating
    1.5 A
    IP rating
    -
    Contact material
    copper alloy
    Contact plating
    Gold
    Number of positions
    68 Position
    Series
    78777
    Voltage Rating
    30 V
    Maximum Operating Temperature
    + 55 C
    Minimum Operating Temperature
    0 C
    Mounting Style
    PCB Mount
    Type
    SAS
    Housing Material
    Liquid Crystal Polymer (LCP)
    Gender
    Female
    Product Type
    I/O Connectors
    Pitch
    0.8 mm, 1.27 mm
    Termination Style
    SMD/SMT
    Product Category
    I/O Connectors
    Flammability Rating
    UL 94 V-0
    Packaging
    Cut Tape
    Color
    Black
    RoHS
    Details
    Brand
    Molex
    Product
    Serial Connectors
    Factory Pack Quantity Factory Pack Quantity
    250
    Subcategory
    I/O Connectors
    Unit Weight
    1.835 g
    Part # Aliases
    787771002 0787771002
    Mounting Angle
    Vertical
    Insulation Resistance
    1 GOhms
