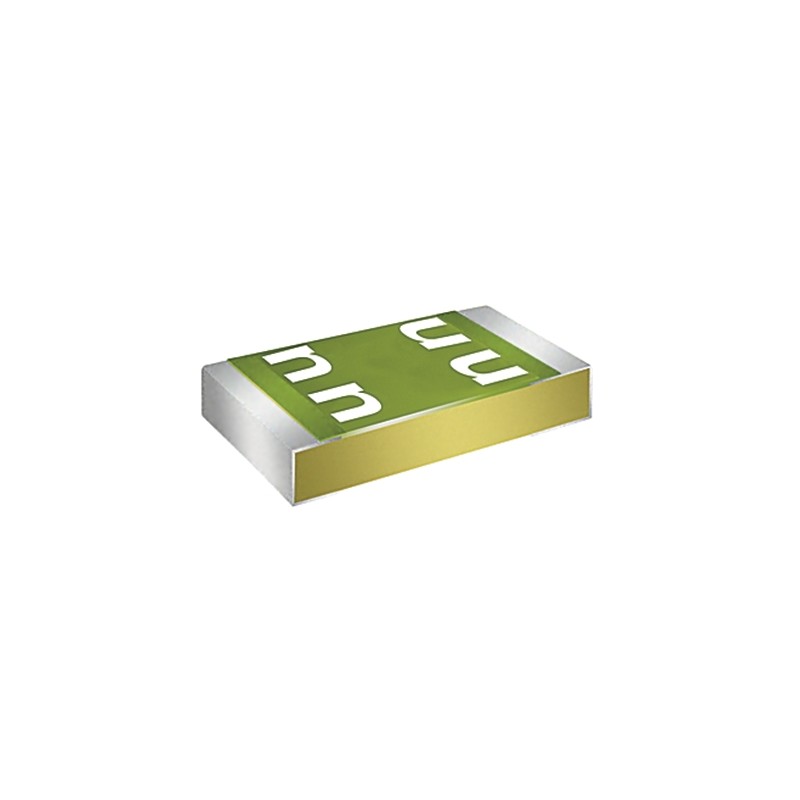

    50 pcs - 3413.0329.22 SchurterSMD Non Resettable Fuse 12A, 32 V ac, 63V dc
    • 50 pcs - 3413.0329.22 SchurterSMD Non Resettable Fuse 12A, 32 V ac, 63V dc

    50 pcs - 3413.0329.22 SchurterSMD Non Resettable Fuse 12A, 32 V ac, 63V dc

    50(Allparts)7032789
    SCHURTER
    50 pcs - 3413.0329.22 SchurterSMD Non Resettable Fuse 12A, 32 V ac, 63V dc
    £40.72
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Schurter UST FusesSchurter UST 1206 suface mount fuses offer secondary protections for both DC and AC applications. Ideally suitable for circuits with inrush also LCD backlight DC-AC inverter.High melting I²t-valuesSlow BlowStandardsUL 248-14, CSA C22.2 no. 248.14ApprovalsUL RecognisedSurface Mount TechnologySurface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
    Product Details
    SCHURTER
    50(Allparts)7032789
    3413.0329.22
    10 Items

    Data sheet

    Manufacturer
    SCHURTER
    Body material
    Epoxy Glass
    Current rating
    12A
    A-Supplier
    Allparts-UK/15/R-14
    Voltage Rating
    32 V ac, 63V dc
    Maximum Operating Temperature
    +90°C
    Minimum Operating Temperature
    -55°C
    Fuse Speed
    T
    Body Length
    3.2mm
    Body Width
    1.6mm
    Breaking Capacity at Maximum Voltage Rating
    100 A @ 32 V ac, 100 A @ 63 V dc
    Body Height
    0.6mm
