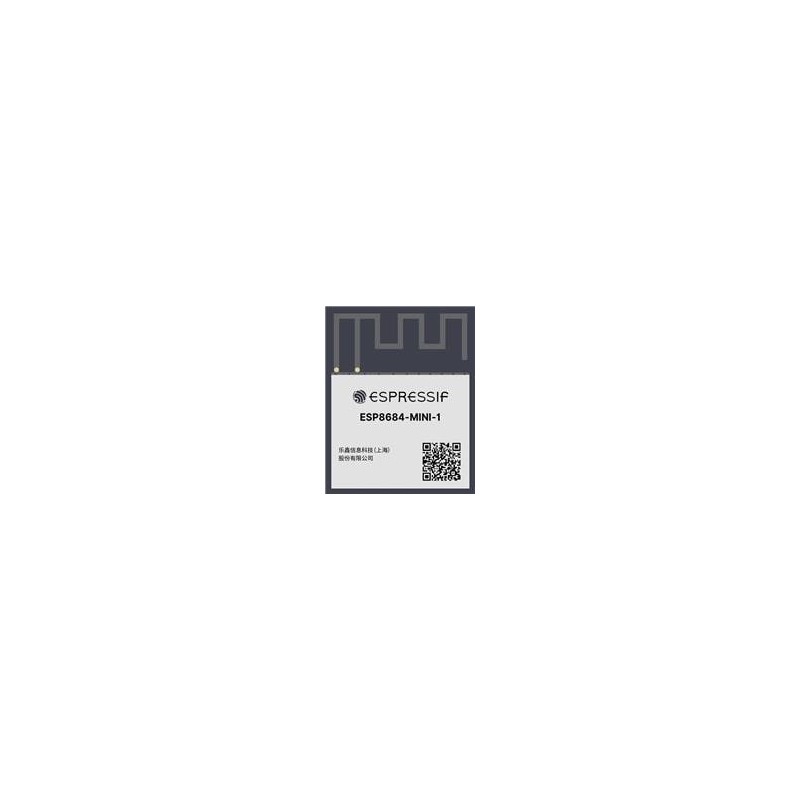

    10 pcs : ESP8684-MINI-1-H2 - Multiprotocol Modules SMD Module, ESP8684H2, 2 MB flash inside, -40C +105C
    • 10 pcs : ESP8684-MINI-1-H2 - Multiprotocol Modules SMD Module, ESP8684H2, 2 MB flash inside, -40C +105C

    10 pcs : ESP8684-MINI-1-H2 - Multiprotocol Modules SMD Module, ESP8684H2, 2 MB flash inside, -40C +105C

    10(Allparts)356ESP8684MINI1H2
    10 pcs : ESP8684-MINI-1-H2 - Multiprotocol Modules SMD Module, ESP8684H2, 2 MB flash inside, -40C +105C
    £40.54
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    ESP8684-MINI Small Wi-Fi® & BLUETOOTH® 5 Modules Espressif Systems ESP8684-MINI Small 2.4GHz Wi-Fi® and BLUETOOTH® 5 Modules are built based on the ESP8684 series of SoCs with a RISC-V single-core microprocessor. The ESP8684-MINI offers an onboard PCB antenna or external antenna connector. The devices provide a rich set of peripherals, ideal for smart homes, industrial automation, health care, and consumer electronics. These peripherals range from UART, I2C, LED PWM controller, general DMA controller, temperature sensor, and SAR ADC. It also includes SPI, Dual SPI, and Quad SPI interfaces.
    Product Details
    Espressif Systems
    10(Allparts)356ESP8684MINI1H2
    ESP8684-MINI-1-H2
    10 Items

    Data sheet

    Manufacturer
    ESPRESSIF
    Dimensions
    16.6 mm x 13.2 mm x 2.4 mm
    Output power
    20 dBm
    Frequency
    2.4 GHz
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Wi-Fi and Bluetooth Module
    Product Type
    Multiprotocol Modules
    Data Rate
    2 Mb/s, 72.2 Mb/s
    Features
    Single-Core Processor, Supports External Power Amplifier
    Interface Type
    GPIO, I2C, I2S, SPI, UART
    Core
    RISC-V
    Product Category
    Multiprotocol Modules
    RoHS
    Details
    Supply Voltage - Min
    3 V
    Supply Voltage - Max
    3.6 V
    Brand
    Espressif Systems
    Factory Pack Quantity Factory Pack Quantity
    650
    Subcategory
    Wireless & RF Modules
    Memory Size
    2 MB
    Operating Supply Current
    500 mA
    Antenna Connector Type
    PCB
    Protocol - WiFi - 802.11
    WiFi
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth 5.0
    Protocol Supported
    802.11 b/g/n,
