    1 pcs : ISP4520-AS-RH - Multiprotocol Modules nRF52832 LoRa Transceiver & BLE 5 Module AS
    • 1 pcs : ISP4520-AS-RH - Multiprotocol Modules nRF52832 LoRa Transceiver & BLE 5 Module AS

    1 pcs : ISP4520-AS-RH - Multiprotocol Modules nRF52832 LoRa Transceiver & BLE 5 Module AS

    Allparts-UK/M/359-ISP4520-AS-RH
    £44.76
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description

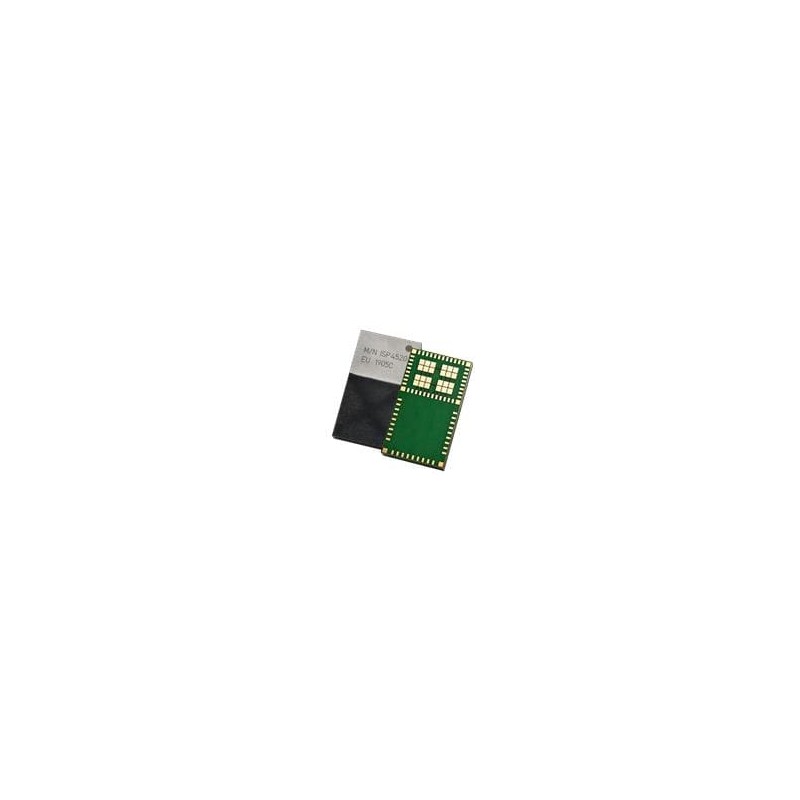

    ISP4520 Series Smart LoRa® & BLE 5 Module Insight SiP ISP4520 Series Smart LoRa® and BLE 5 Module is designed to quickly and easily add wireless connectivity to applications. The ISP4520 module combines the short-range high throughput capability and easy access of BLUETOOTH® Low Energy (BLE) with the long-range features of LoRaWAN® in a compact 9.8mm x 17.2mm x 1.7mm package. The module also integrates antennas for BLE and LoRa transmission, enabling the device to be a pre-certified complete radio and application core solution.
    Product Details
    INSIGHT SIP
    Allparts-UK/M/359-ISP4520-AS-RH
    ISP4520-AS-RH
    10 Items

    Data sheet

    Manufacturer
    INSIGHT SIP
    Dimensions
    9.8 mm x 17.2 mm x 1.7 mm
    Output power
    14 dBm
    Frequency
    920 MHz to 923 MHz, 2.4 GHz
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 30 C
    Type
    LoRa, BLE
    Product Type
    Multiprotocol Modules
    Interface Type
    SPI
    Product Category
    Multiprotocol Modules
    Packaging
    Cut Tape
    Supply Voltage - Min
    1.8 V
    Supply Voltage - Max
    3.6 V
    Brand
    Insight SiP
    Operating Supply Voltage
    1.8 V to 3.6 V
    Product
    LoRa, BLE
    Factory Pack Quantity Factory Pack Quantity
    250
    Subcategory
    Wireless & RF Modules
    Antenna Connector Type
    External
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth 5.0
