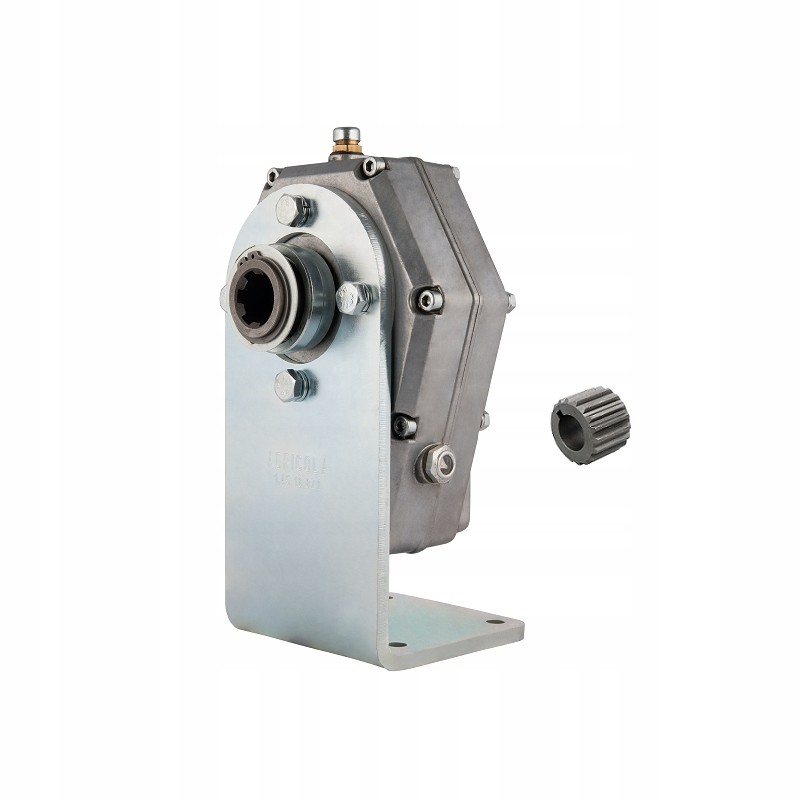

PTO pump gear multiplier wl gr3 rolmus

MULTIPLICATOR GEAR RATIO 1:3.76 (64/17) WITH A PTO SOCKET FOR THE TRACTOR SHAFT IN A SET WITH A CLUTCH FOR GR3 SERIES PUMPS AND A BRACKET MOUNTING TO THE BASE Production:

Original product of the Rolmus brand, symbol: 1.45.10.029.90.132

Application:

The gear increases many times rotation speed of the hydraulic pump shaft relative to the source drive. Enables high pump efficiency at low PTO drive shaft revolutions.

Perfect for driving GR3 hydraulic pumps requiring high oil flow in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF others with a typical PTO drive with a 1 3/8' shaft.

The PTO socket with which the gearbox is equipped allows it to be mounted directly on the PTO drive shaft of a tractor or machine. A special latch prevents the gear from sliding off the drive shaft.

Technical data of the gear:

The set includes a splined clutch GR3 35X31 Z18 1:8 for connecting the GR3 pump shaft with the multiplier.

The set includes a bracket that fastens the gear to the base and blocks its rotation after the drive is turned on PTO

Pump mounting: 4 M10x40 screws with a spacing of 98 mm x 128 mm (not included)

Pump centering flange diameter: 50.8 mm

Pump shaft type: conical 1:8

Multiplier ratio: 1:3.76 (64/ 17)

Multiplier power: 20 kW

Internal socket with latch, PTO standard 1.3/8' DIN9611

Maximum input speed: max 540 rpm

Maximum output speed: max 2052 rpm

Has a viewfinder to check the level gear oil.

Sheet thickness of the mounting bracket: 8 mm

Material of the mounting bracket: steel

Coating of the mounting bracket: galvanized

Permissible ambient temperature: -40 C to +60 C

When using for the first time, replace the oil after 50 operating hours. The gearbox needs to be filled with oil. The maximum capacity is 0.35.

We recommend gear oil, e.g. HIPOL GL-4 80W/90
