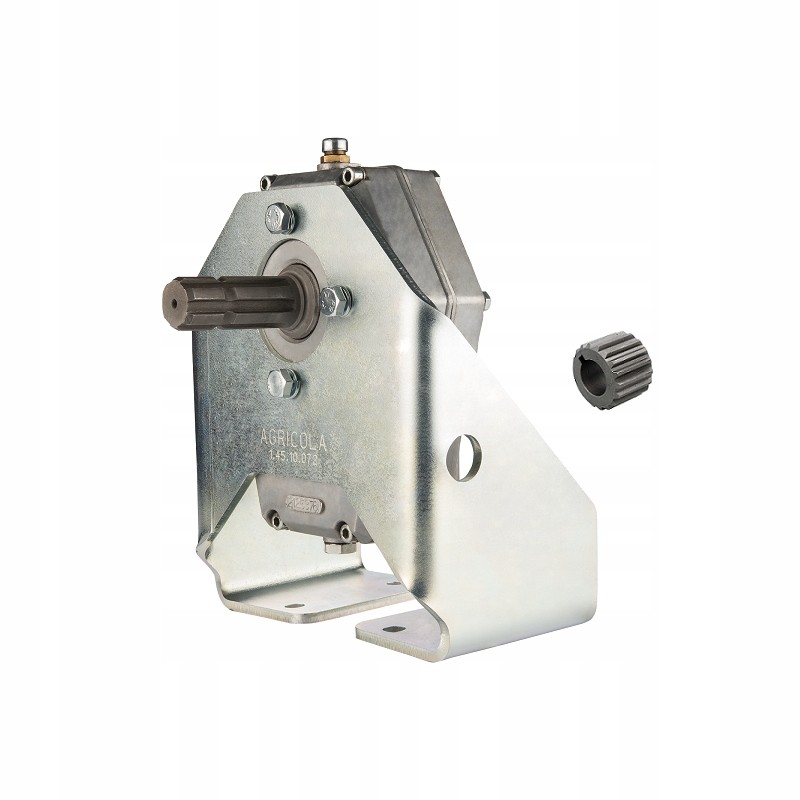

Multiplier, PTO pump gear, toilet gr2 Rolmus

MULTIPLICATOR GEAR RATIO 1:3.76 (64/17) WITH A PROJECTING PTO SHAFT WITH A CLUTCH FOR GR2 SERIES PUMPS AND A REINFORCED BRACKET MOUNTING TO THE BASEProduction:

Original product of the Rolmus brand, symbol: 1.45.10.029.90.223

Application:

The gear increases the rotation speed many times hydraulic pump shaft relative to the source drive. Enables high pump efficiency at low PTO drive shaft revolutions.

Perfect for driving GR2 hydraulic pumps requiring high oil flow in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF others with a typical PTO drive with a 1 3/8' shaft.

The protruding PTO shaft allows the transmission to be driven using a PTO shaft. This solution allows you to move the gearbox away from the tractor or other drive source and install it elsewhere on the machine or other external device.

Technical data of the gearbox:

The set includes a splined clutch GR2 35X31 Z18 1:8 for connecting the GR2 pump shaft with the multiplier.

The set includes a bracket that mounts the gear to the base and blocks its rotation after engaging the PTO drive.

Pump mounting: 4 M10x40 screws with a spacing of 71.5 mm x 96.2 mm (not included)

Diameter of the pump centering flange: 36.5 mm

Type pump shaft: conical 1:8

Multiplier ratio: 1:3.76 (64/17)

Multiplier power: 20 kW

Protruding shaft standard PTO 1.3/8' DIN9611

Maximum input speed: max 540 rpm

Revolutions maximum output: max 2052 rpm

It has a viewfinder to check the gear oil level.

Thickness of the mounting bracket sheet: 8 mm

Material of the mounting bracket: steel

Coating of the mounting bracket: galvanized

Permissible ambient temperature: -40 C to +60 C

When first used, change the oil after 50 operating hours. The gearbox needs to be filled with oil. The maximum capacity is 0.35.

We recommend gear oil, e.g. HIPOL GL-4 80W/90
